01
RFID Retail Stores
Sits invisibly in ceiling tiles above shop floors, reading every tagged garment and product continuously without disrupting the store layout.

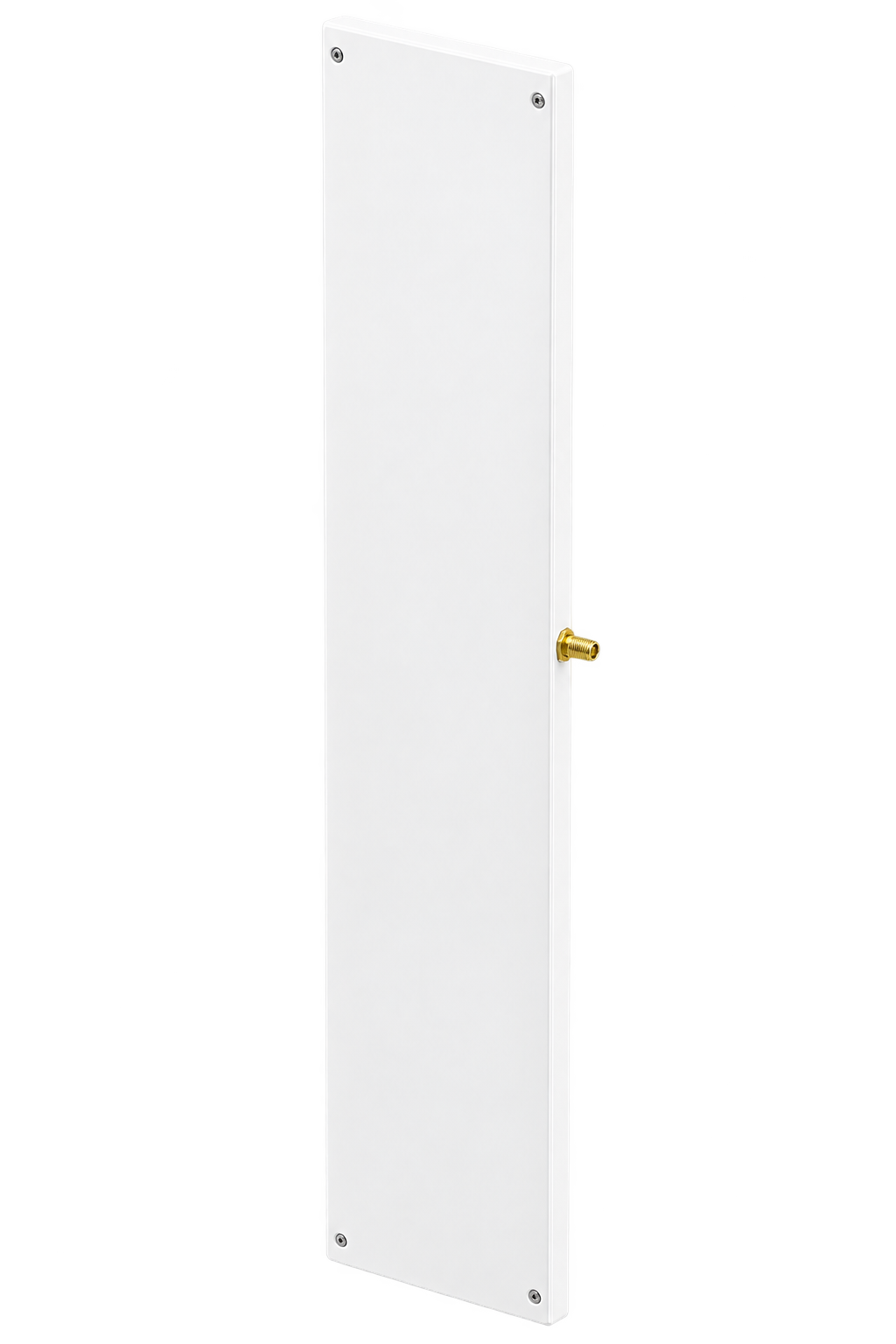

Model — LM700
RFID UHF
RFID UHF
Slim Antenna
The LM700 is built for spaces where a standard antenna simply will not fit. At just 12mm thin, it installs inside ceiling tiles, shelf brackets and conveyor frames without any structural modification, and still delivers 6.5 dBi of reliable read performance across a full 70 degree coverage zone.
3-Year Enterprise Warranty
ISO 9001 Tested & Certified
Download Datasheet
Ultra-slim 12mm profile
Fits inside ceiling panels, shelf units and display frames where standard antennas cannot.
Linear far-field reads
6.5 dBi gain for precise, directional tag reads across the full coverage zone.
IP65 weatherproof
Sealed against dust and water for reliable use indoors and in exposed outdoor environments.
70° beam coverage
Wide angle in both planes for full-zone coverage with a single antenna mount.
APPLICATIONS
Slim Fit.
Many Environments
Where space is tight and performance cannot be compromised, the GF-LM700 delivers.
02
RFID Smart Shelves
Fits inside standard retail shelving at just 12mm thick, triggering low-stock alerts and real-time inventory counts without any shelf modification.
03
Point-of-Sale Checkout
Mounts under or behind the counter for instant multi-item reads, capturing a full basket of RFID-tagged products in under a second.
04
Smart Interactive Displays
Embedded behind digital mirrors and fitting room screens, detecting tagged items and serving personalised product content automatically.
05
Vehicle Parking and Toll Gates
Installed overhead at entry and exit points, identifying RFID vehicle tags reliably through rain, dust and direct sunlight.
06
Warehouse Dock Doors
Reads pallets and cartons on moving forklifts without stopping traffic flow, capturing every item passing through the dock in real time.
Detailed Technical
Mechanical & Environmental
Form Factor and Housing Tolerance
- Dimensions (L x W x D)
- 550 mm x 90 mm x 12 mm
- Net Weight
- 0.65 Kg (1.43 Lbs)
- Enclosure Material
- ABS Environmental Polymer
- Chassis Color
- Pure Industrial ABS White
- Ingress Protection
- IP65 Weatherproof
- Operating Temperature
- -20°C to +55°C
- Storage Temperature
- -30°C to +65°C
- Connector Type
Electrical Specifications
RF Radiation & Gain Parameters
- Frequency Range
- 865 to 868 MHz (Global UHF)
- Antenna Gain
- Antenna Polarisation
- Linear Far-Field Radiation
- 3dB Beam Width
- 70° in both planes
- VSWR
- 1.4:1 Typical
- Front-to-Back Ratio
- 22 dB Minimum
- Nominal Impedance
- 50 Ohm
- Max Input RF Power
- 20 Watts
Explore Our Premium Range Of
RFID
Discover the full GreenFuturz antenna range, from compact 3 dBi panels to high-gain 9 dBi models built for demanding outdoor and long-range deployments.

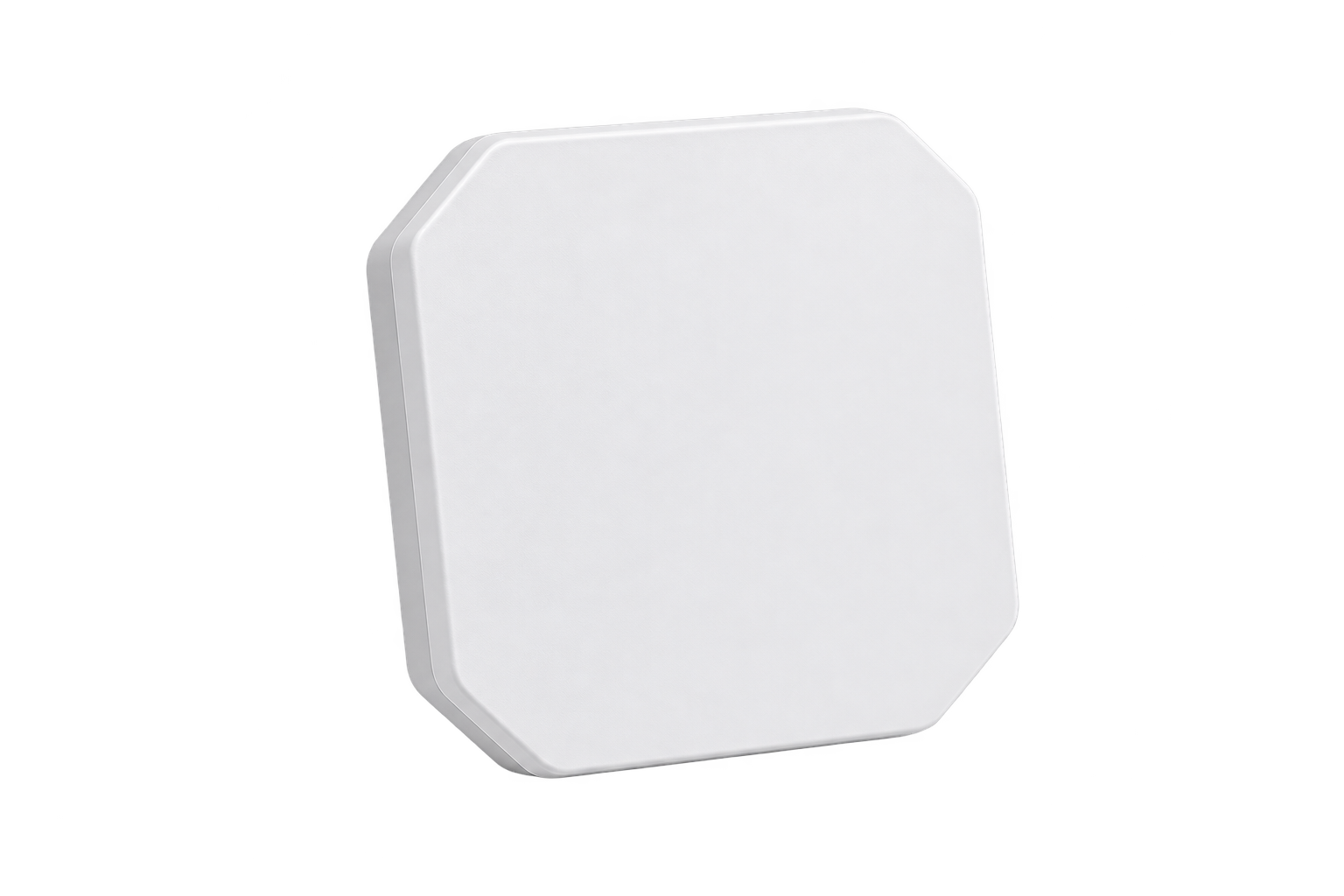

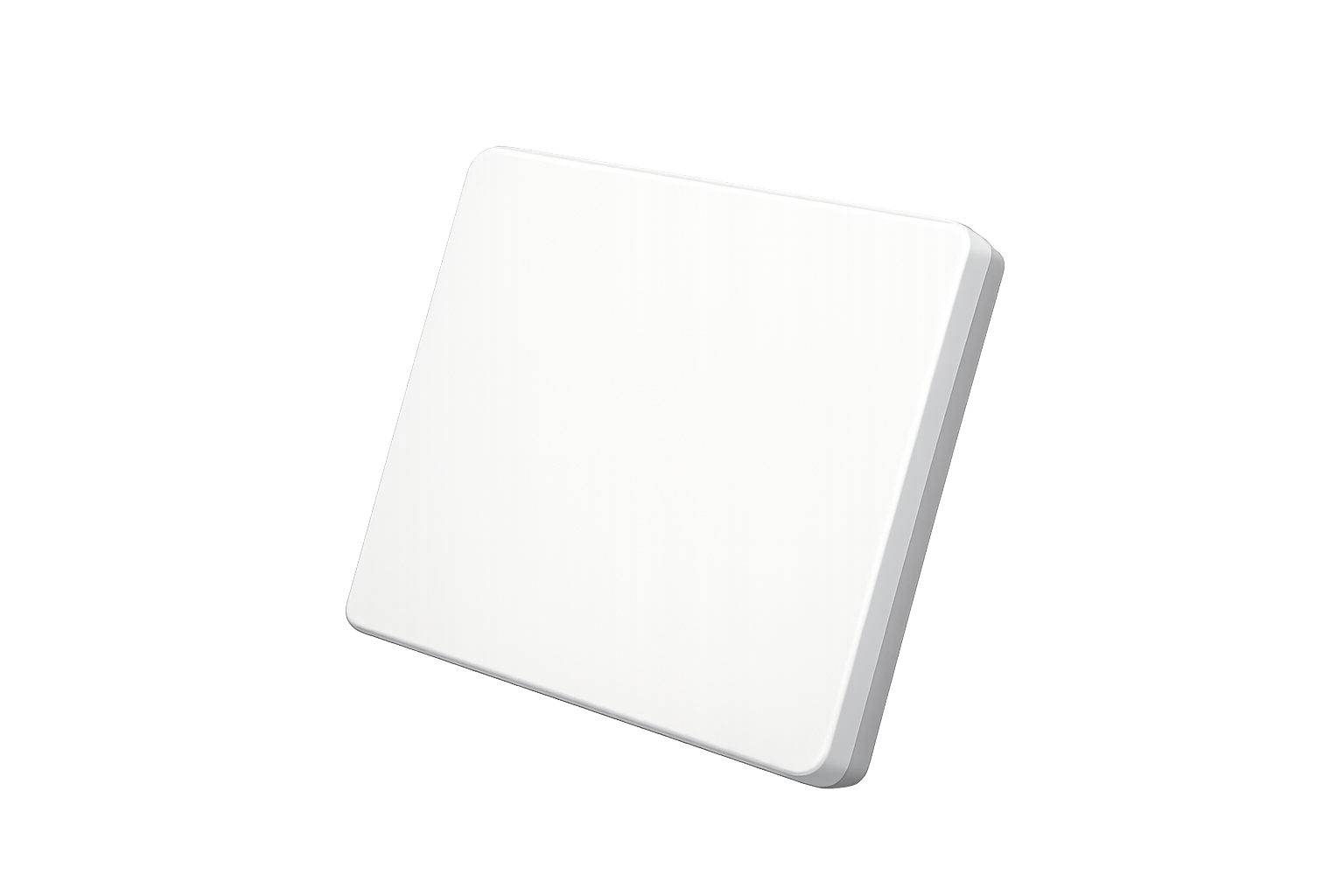

Model — LM200
RFID UHF
RFID UHF
LM200 Antenna
Industry-class RFID UHF antenna delivering rapid read results and simplified RFID infrastructure. Wide 865-867 MHz frequency range ensures maximum throughput even in highly-congested tag environments, indoors or outdoors.
3-Year Enterprise Warranty
ISO 9001 Tested & Certified
Download Datasheet
High antenna gain
Over 9 dBi for strong, reliable reads across large areas.
Circular polarisation
Reads tags at any orientation, no alignment needed.
IP67 weatherproof
Dust and water sealed for indoor and outdoor use.
Wide beam coverage
70° beam angle covers broad zones with fewer antennas.
APPLICATIONS
One Antenna.
Many Possibilities.
Powering smarter RFID operations across industries worldwide.
01
Warehouse Management
Reads pallets at dock doors and aisle portals automatically, giving your team live stock data without a single manual scan.
02
Logistics & Supply Chain
Captures every tagged shipment as it moves through your distribution centre, from goods-in to final dispatch, hands-free.
03
Retail Item Management
Mounts overhead and audits your store continuously, every tagged product counted in real time so stocktake becomes automatic.
04
Vehicle Parking
Reads windshield tags as vehicles approach. Barriers open instantly, no tickets, no cameras, no friction.
05
Manufacturing Lines
Tracks every component through assembly automatically. Live WIP data, full traceability and instant alerts when something goes off-plan.
06
Indoor & Outdoor Portals
IP67-rated and built for both environments. Works above a rainy yard gate just as reliably as inside a shopping centre.
Detailed Technical
Mechanical & Environmental
Form Factor and Housing Tolerance
- Dimensions (L x W x D)
- 258 mm x 258 mm x 36 mm
- Net Weight
- 0.91 Kg (without bracket)
- Enclosure Material
- ASA Plastic & Aluminum
- Chassis Color
- Ivory White
- Ingress Protection
- IP67 Weatherproof
- Operating Temperature
- -40°C to +85°C
- Storage Temperature
- -40°C to +85°C
- Relative Humidity
- 5% to 95%
Electrical Specifications
RF Radiation & Gain Parameters
- Frequency Range
- 865 to 867 MHz (Global UHF)
- Antenna Peak Gain
- Antenna Polarisation
- Circular Polarisation
- H-Side HPBW
- 70°
- E-Side HPBW
- 70°
- Maximum VSWR
- 1.3:1 Typical
- Nominal Impedance
- 50 Ohm
- Connector Type
Explore Our Premium Range Of
RFID
Discover sibling antenna configurations and specialized long-range industrial models built for enterprise RFID deployments.

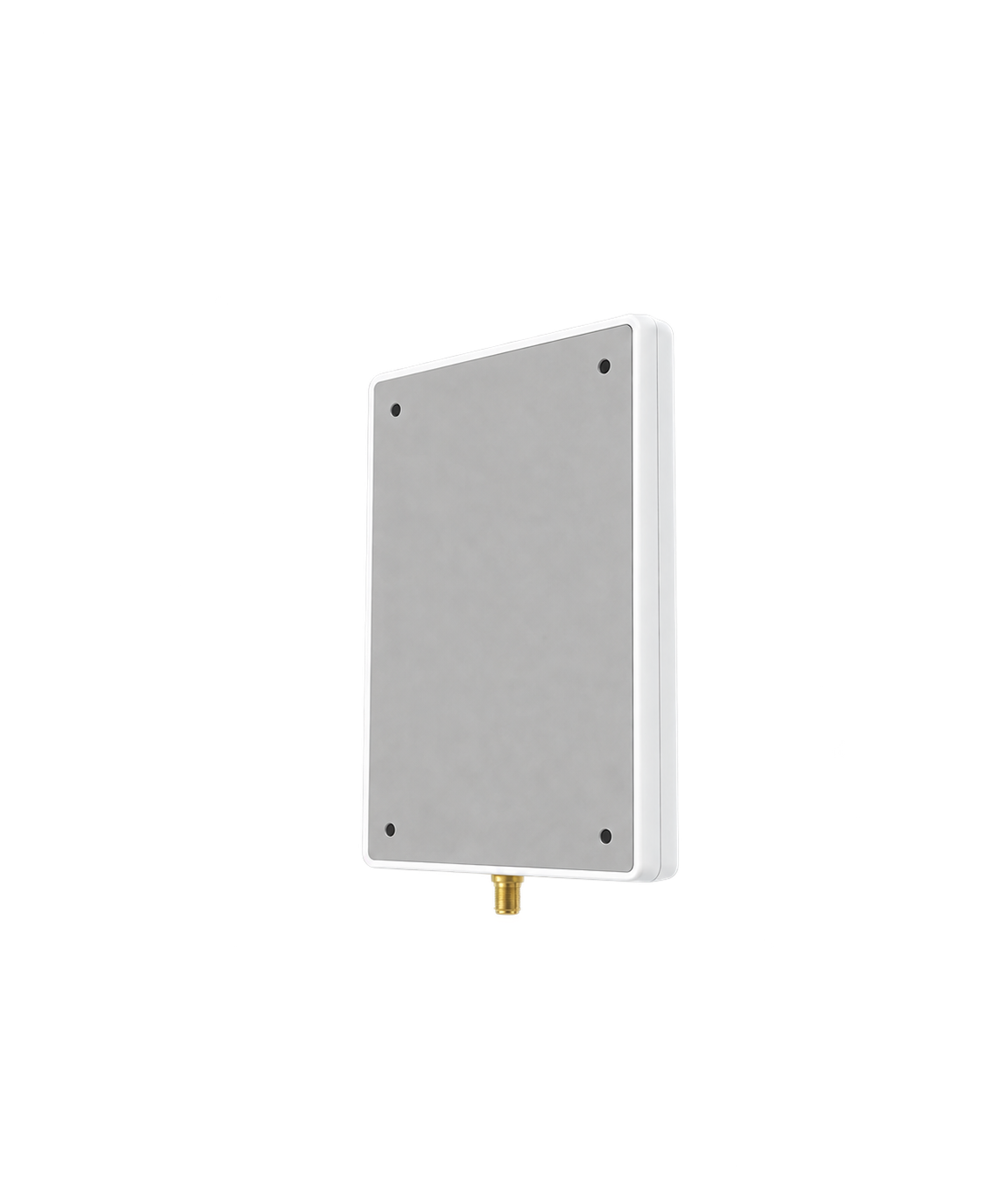

Model — GF-LM750
RFID UHF
RFID UHF
3 dBi Antenna
The GF-LM750 is designed for close-range, high-accuracy RFID reads in environments where precision matters more than distance. At 150mm square and just 7.6mm thin, it fits behind retail shelves, inside tool cabinets and below counter surfaces without any visible installation.
3-Year Enterprise Warranty
ISO 9001 Tested & Certified
Download Datasheet
Compact 150mm panel
Fits inside shelf units, tool cabinets and display frames where larger antennas cannot reach.
Circular polarisation
Reads tags accurately at any orientation, no alignment needed for item-level tracking.
IP54 protection
Resistant to dust and water splashes for reliable use in retail, healthcare and light industrial environments.
Up to 3m read range
Short-range precision for zone-level accuracy without reading tags in adjacent areas.
APPLICATIONS
Small Form.
Big Accuracy.
The GF-LM750 goes where traditional RFID antennas simply do not fit.
01
Tool Tracking
Mounted inside tool cabinets and storage drawers, the LM750 logs every tool in and out automatically without staff needing to scan anything.
02
Asset Monitoring
Tracks high-value equipment inside enclosures and storage rooms, giving facilities teams a real-time view of every asset location and movement.
03
RFID Smart Shelves
Hidden behind retail shelf panels at 7.6mm thin, it counts every tagged product continuously and triggers low-stock alerts before shelves run empty.
04
Inventory Control
Reads only tags within a 3-metre zone, so stock counts in storage rooms and pharmacies stay accurate without picking up items from neighbouring areas.
05
Healthcare Asset Management
Tracks surgical trays, medical devices and consumables inside clinical cabinets. IP54 rated for regular sanitisation with no impact on performance.
06
Retail Display and POS
Embedded behind digital display panels and POS counters, it detects tagged products placed nearby and triggers personalised content or loss prevention alerts.
Detailed Technical
Mechanical & Environmental
Form Factor and Housing Tolerance
- Dimensions (L x W)
- 150 mm x 150 mm
- Profile Depth
- Net Weight
- 300 g
- Radome Material
- ABS White
- Ingress Protection
- IP54 Weatherproof
- Operating Temperature
- -10°C to +85°C
- Connector Type
- Nominal Impedance
- 50 Ohm
Electrical Specifications
RF Radiation & Gain Parameters
- Frequency Range
- 865 to 868 MHz (ETSI)
- Antenna Gain
- Antenna Polarisation
- Circular Polarisation
- Beamwidth (Vertical)
- 60°
- Beamwidth (Horizontal)
- 60°
- Read Distance
- Up to 3 metres
- Nominal Impedance
- 50 Ohm
- Connector Type
Explore Our Premium Range Of
RFID
Discover the full GreenFuturz antenna range, from high-gain 9 dBi outdoor models to ultra-slim ceiling-mount designs built for retail and warehouse deployments.
Zebra Authorized Reseller
RFID Antenna
RFID Antenna

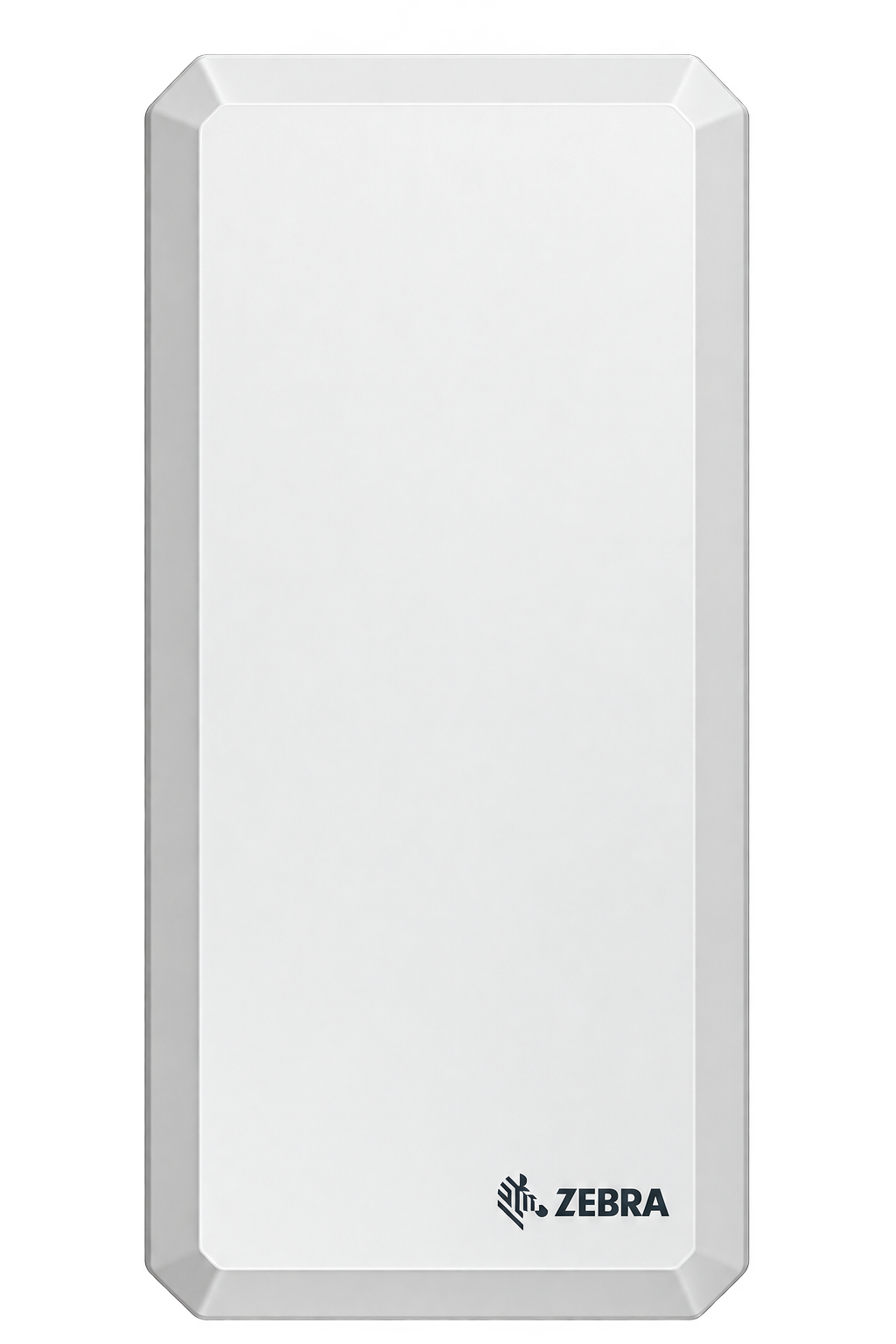

AN440
The Zebra AN440 is a high-performance dual-element RFID antenna built for large-area coverage in warehouses, retail floors and outdoor portals. A single AN440 houses both LHCP and RHCP elements that work together in bi-static mode or independently as two separate antennas, giving you broader coverage from one clean ceiling or wall installation. Available in India at competitive prices through GreenFuturz.
Authorized Zebra Reseller
Competitive Pricing in India
Download Datasheet
Dual-element architecture
LHCP and RHCP elements in one housing for bi-static operation or two independent mono-static antennas.
6 dBiL high gain
Wide read field for fast, accurate tag capture across large warehouse floors and expansive retail areas.
IP67 UV-stable housing
ASA housing resists dust, water and UV exposure for reliable indoor and permanent outdoor installation.
Easy ceiling and wall mount
Integrated mounting holes make it simple to install above shelves, at doorways and across dock platforms.
WHERE IT WORKS
Built for the
environments that matter.
01Retail Stores
02Jewellery Stores
03Apparel Stores
04Warehouse Management
Datasheet Reference
Detailed Technical
Mechanical & Environmental
Form Factor and Housing Tolerance
- Dimensions (L x W x D)
- 575.1 mm x 259.1 mm x 33.5 mm
- Net Weight
- 1.9 Kg
- Housing Material
- UV-Stable ASA
- Ingress Protection
- IP67 Weatherproof
- Operating Temperature
- -30°C to +70°C
- Storage Temperature
- -40°C to +85°C
- Mounting
- Integrated Mounting Holes
- Max Input Power
- 10 W per Port
Electrical Specifications
RF Radiation & Gain Parameters
- Frequency Range
- 865 to 868 MHz (EU)
- Antenna Gain
- Polarisation
- 1x LHCP / 1x RHCP (Dual)
- Beamwidth (Azimuth)
- 70°
- Beamwidth (Elevation)
- 70°
- VSWR
- <1.4:1
- Front-to-Back Ratio
- 20 dB
- Connector Type
Explore Our Range Of
RFID
Discover our full antenna lineup, from GreenFuturz-manufactured high-gain models to Zebra's industry-proven compact antennas, all available at competitive prices in India.
Zebra Authorized Reseller
RFID Antenna
RFID Antenna

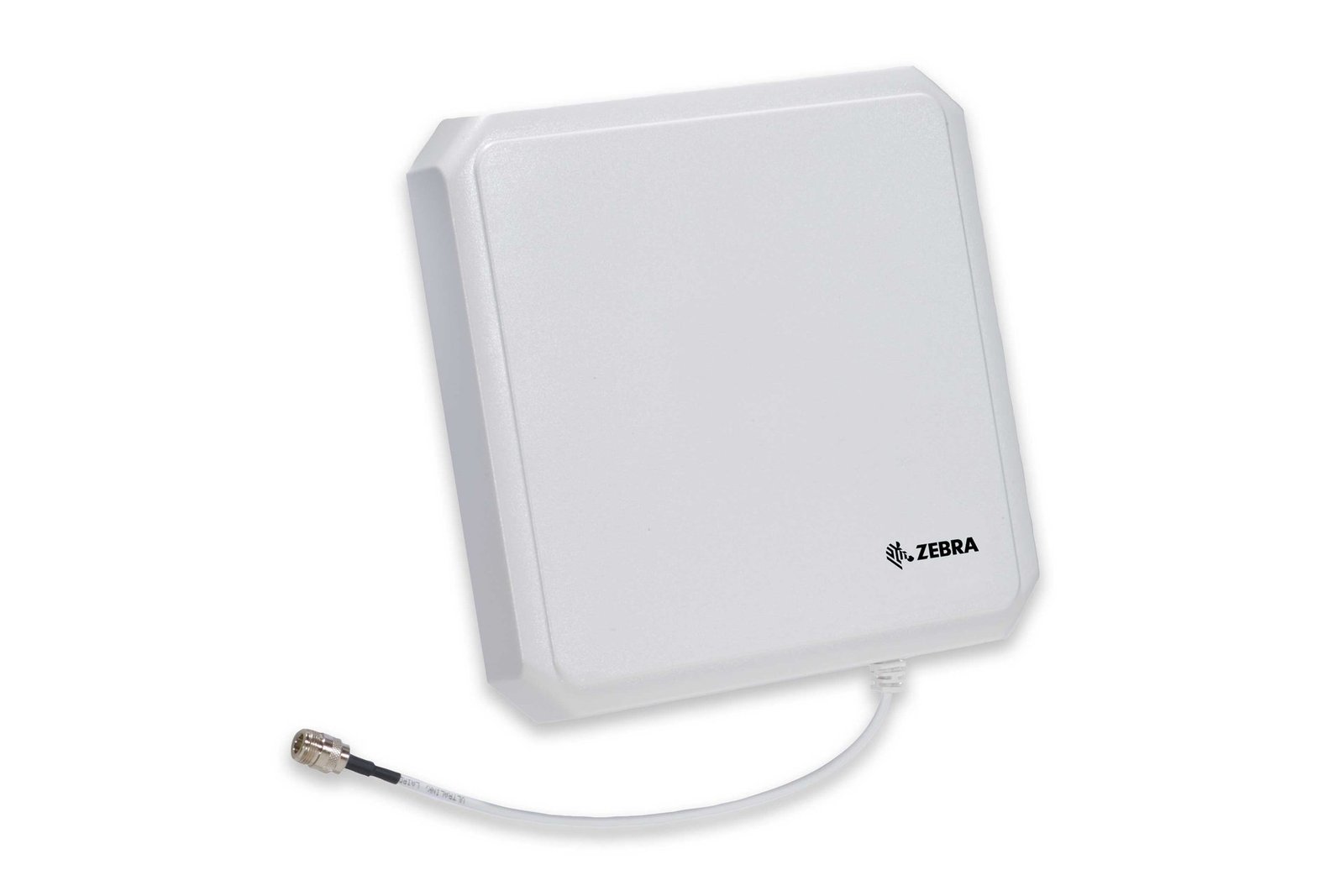

AN480
The Zebra AN480 is a single-port wide-band RFID antenna that covers 865 to 956 MHz in one unit, so one model works across EU and US deployments without any configuration change. At 259mm square and 1.13 kg, it mounts cleanly on ceilings and walls for retail floors, warehouse portals and vehicle parking. Available in India at competitive prices through GreenFuturz.
Authorized Zebra Reseller
Competitive Pricing in India
Download Datasheet
Wide-band 865-956 MHz
One antenna covers both EU and US frequency bands so the same model deploys globally without configuration changes.
LHCP and RHCP
Both polarisations available in a single-port unit, giving flexible read coverage for mixed-orientation tag environments.
IP54 industrial rated
Sealed against dust and water splashes for reliable deployment in retail, manufacturing and light outdoor environments.
Standard bracket mount
Ships with Zebra standard mounting bracket for straightforward installation on ceilings, walls and dock portals.
WHERE IT WORKS
Built for the
environments that matter.
01Retail Stores
02Manufacturing Sectors
03Warehouse Management
04Vehicle Parking
05Jewelry Stores
Datasheet Reference
Detailed Technical
Mechanical & Environmental
Form Factor and Housing Tolerance
- Dimensions (without screws)
- 259.1 mm x 259.1 mm x 33.5 mm
- Dimensions (with screws)
- 259.1 mm x 259.1 mm x 50.3 mm
- Net Weight
- 1.13 Kg (2.5 lbs)
- Ingress Protection
- IP54 Rated
- UV Rating
- F2 per UL 746C
- Vibration Standard
- IEC-68 Series
- Mounting
- Standard Zebra Bracket
- Connector Type
Electrical Specifications
RF Radiation & Gain Parameters
- Frequency Range
- Antenna Gain
- Polarisation
- LHCP and RHCP
- Beamwidth (Horizontal)
- 65° (3 dB)
- Beamwidth (Vertical)
- 65° (3 dB)
- VSWR (Free Space)
- 1.22:1 max
- Front-to-Back Ratio
- 18 dB
- Nominal Impedance
- 50 Ohm
Explore Our Range Of
RFID
Discover our full antenna lineup, from GreenFuturz-manufactured high-gain models to Zebra's industry-proven compact antennas, all available at competitive prices in India.
Zebra Authorized Reseller
RFID Antenna
RFID Antenna
AN720
The Zebra AN720 is a compact, rugged RFID UHF antenna built for both indoor and outdoor use. At just 132.8 x 132.8 x 18.1mm, it installs discreetly under POS counters, at dock doors and in customer-facing areas, while its IP67 rating handles rain, dust and temperature extremes without compromising read accuracy. Available in India at competitive prices through GreenFuturz.
Authorized Zebra Reseller
Competitive Pricing in India
Download Datasheet
IP67 rated housing
Sealed for dust and water, deployable at outdoor dock doors, shopping areas and harsh environments.
100° beam coverage
Wide angle in both azimuth and elevation planes for broad, accurate reads in space-constrained areas.
Articulating mount included
Integrated adjustable bracket enables flexible positioning and quick installation right out of the box.
MIL-STD-810 certified
Military-grade vibration and shock resistance for reliable deployment in demanding industrial environments.
WHERE IT WORKS
Built for the
environments that matter.
01
Warehouse Management
02
Retail Stores
03
Inventory
04
Logistics
05
Jewelry Stores
06
Hospitality
Datasheet Reference
Detailed Technical
Mechanical & Environmental
Form Factor and Housing Tolerance
- Dimensions (L x W x D)
- 132.8 mm x 132.8 mm x 18.1 mm
- Net Weight
- 0.46 Kg
- Housing Material
- Aluminum with White Cover
- Ingress Protection
- IP67 Weatherproof
- Operating Temperature
- -30°C to +70°C
- Storage Temperature
- -40°C to +85°C
- Mounting
- Integrated Articulating Bracket
- Certification
- MIL-STD-810, IEC 68-2-27
Electrical Specifications
RF Radiation & Gain Parameters
- Frequency Range
- 865 to 868 MHz (EU)
- Antenna Gain
- Polarisation
- Left-Hand Circular (LHCP)
- Beamwidth (Azimuth)
- 100°
- Beamwidth (Elevation)
- 100°
- VSWR
- 1.5:1
- Front-to-Back Ratio
- 8 dB
- Connector Type
Explore Our Range Of
RFID
Discover our full antenna lineup, from GreenFuturz-manufactured high-gain models to Zebra's industry-proven compact antennas, all available at competitive prices in India.
GreenFuturz Original
RFID UHF
RFID UHF

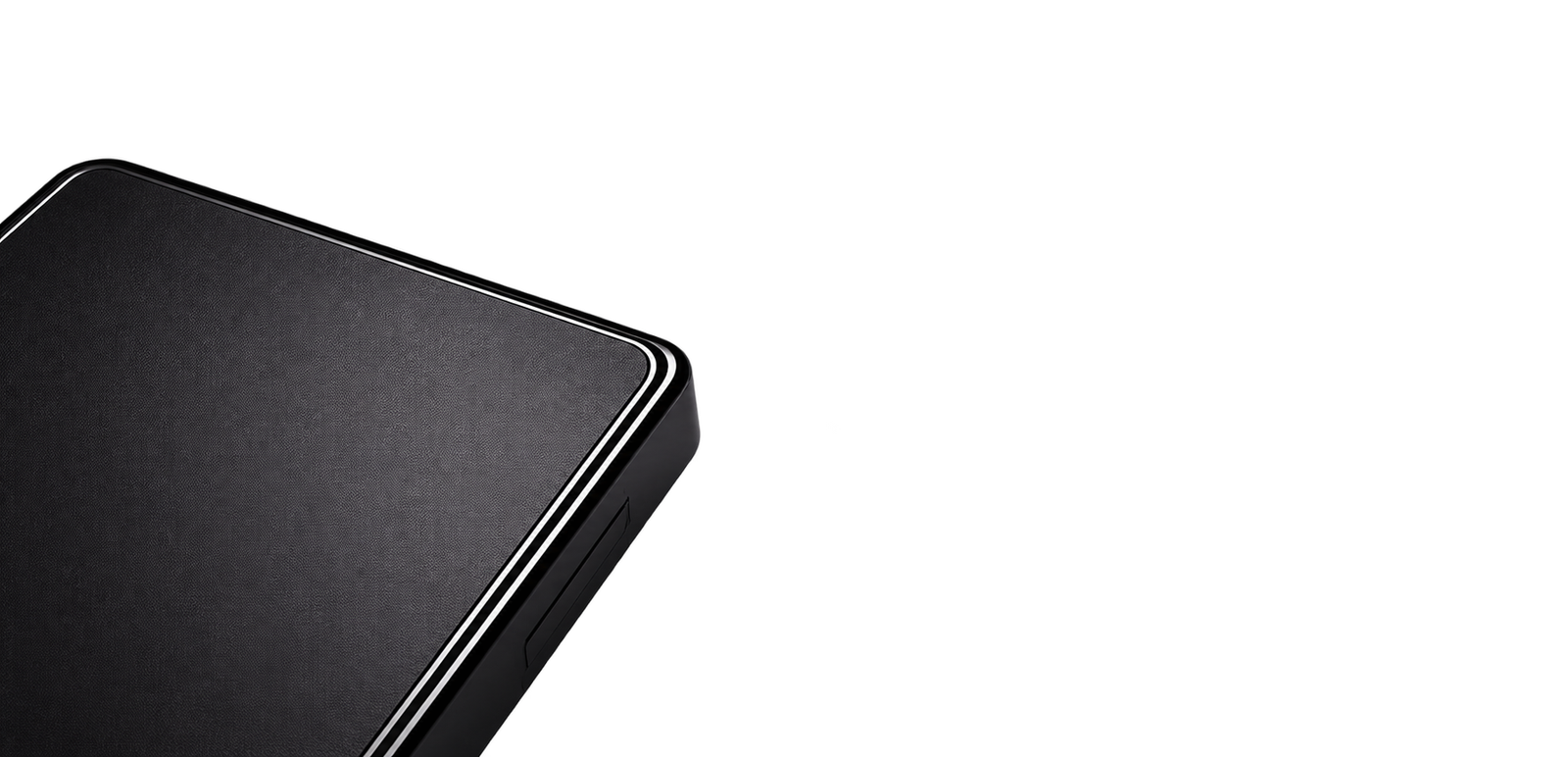

Desktop Reader
Plug it into any USB port and it works instantly. The GreenFuturz RFID UHF Desktop Reader appears as a keyboard on your computer, reads UHF tags up to 30cm away and sends the data directly into whatever application is open on screen. No drivers, no software setup, no IT involvement needed.
3-Year Enterprise Warranty
SDK and Demo Software Included
Download Datasheet
Plug and play USB
No drivers or software needed. Connects as a HID keyboard and starts reading immediately on any computer.
Built-in UHF antenna
Integrated antenna reads tags up to 30cm. No external antenna, no cabling, no extra hardware required.
Multi-protocol support
Reads EPC C1G2, ISO18000-6C and ISO15693 tags in one device across all major RFID standards.
Ultra compact 110mm
Sits flat on any desk or counter at just 10mm thin. Designed for POS counters and space-constrained workstations.
WHERE IT WORKS
One Reader.
Many Workflows.
01
Point-of-Sale Systems
A tagged item logs straight into your POS, no barcode scanning, no manual entry needed.
02
Document Tracking
Every document movement is captured automatically at the desk via RFID labels.
03
Access Control
Log every staff entry with a simple RFID card tap, no contact required.
04
Tag Programming
Write and encode RFID tags from your workstation using the included SDK.
05
Smart Shelves
Detect tagged products and trigger live inventory updates on connected displays.
06
Inventory Management
Count and audit tagged stock right at the desk without any manual scanning.
Datasheet Reference
Detailed Technical
Physical Specifications
Form Factor and Housing
- Dimensions (L x W x D)
- Housing Material
- Plastic
- Interface
- Micro USB
- Operating Temperature
- -40°C to +85°C
- Storage Temperature
- -40°C to +85°C
- Includes
- SDK and Demo Software
Performance Specifications
RF and Read Parameters
- Frequency Range
- 865 to 867 MHz
- Read Range
- Antenna
- Built-in Integrated
- Interface Type
- HID Keyboard Emulation
- RFID Standard
- EPC C1G2, ISO18000-6C
- Additional Protocol
- ISO15693
Explore Our Range Of
RFID
From compact desktop readers to enterprise fixed readers and long-range handhelds, GreenFuturz has a reader for every RFID deployment.
GreenFuturz Original
RFID UHF
RFID UHF

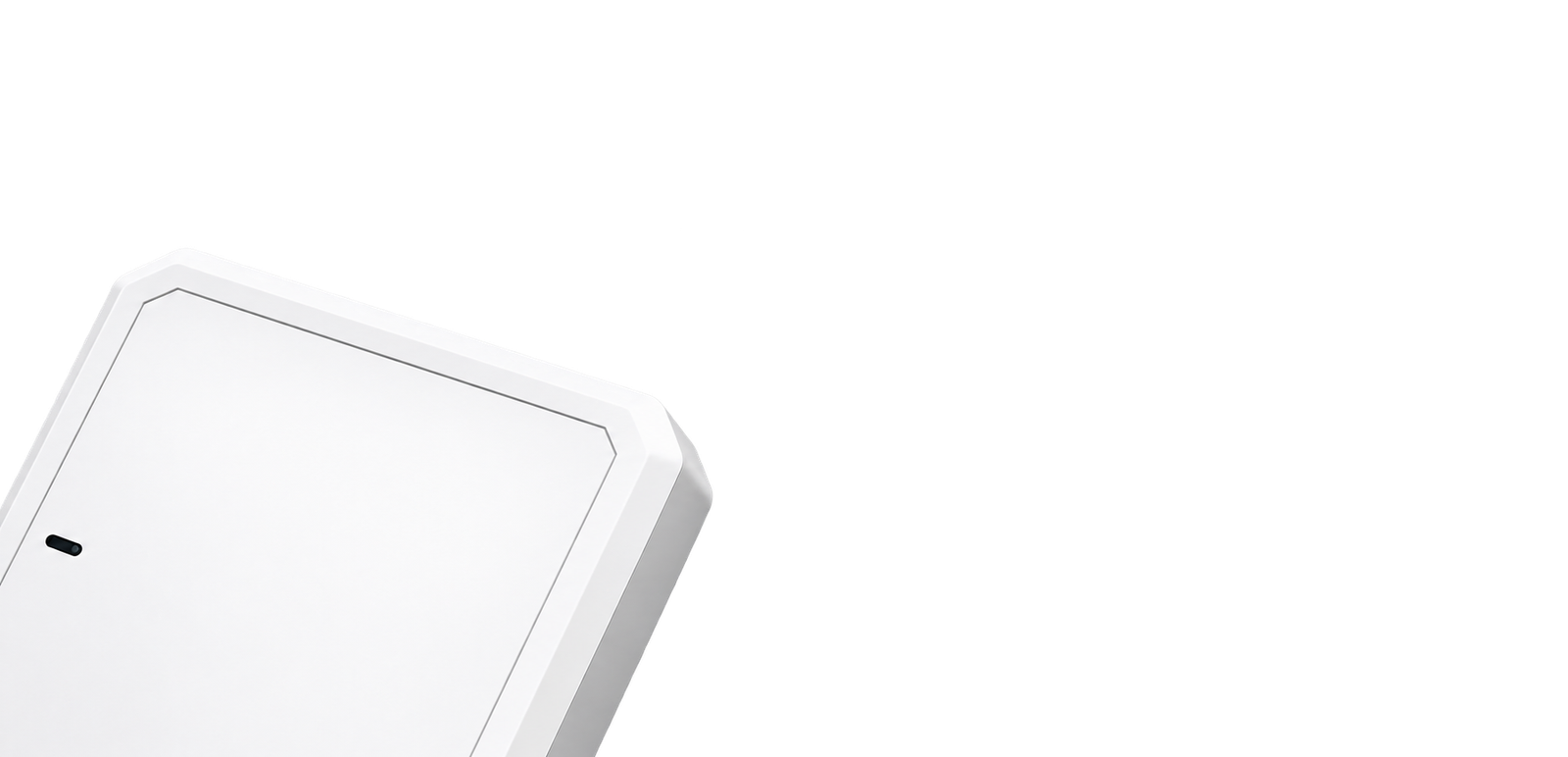

Integrated Reader
The GreenFuturz RFID UHF Integrated Reader is built for fixed installations where performance and read range matter most. With up to 20 metres of read range, 8 antenna ports and GPIO support, it integrates directly into your warehouse or manufacturing infrastructure and delivers EPCglobal Class 1 Gen 2 reads reliably across every tag in the zone.
3-Year Enterprise Warranty
ISO 9001 Tested and Certified
Download Datasheet
20 metre read range
Reads tagged items across large warehouse floors and manufacturing zones without repositioning antennas.
8 antenna ports
Supports up to 8 monostatic or 4 bistatic antenna connections for broad, flexible coverage.
IP53 industrial rated
Protected against dust and water spray for reliable fixed installation in industrial environments.
High receive sensitivity
Up to -84.5 dBm monostatic sensitivity for accurate reads in dense tag and congested RF environments.
WHERE IT WORKS
Fixed Once.
Reads Everything.
01
Warehouse Management
Reads pallets at dock doors and aisle portals automatically, giving your team live stock data without manual scanning.
02
Manufacturing Lines
Tracks WIP components across assembly lines continuously, providing live production data and full traceability.
03
Stock Checks and Audits
Audits your entire tagged inventory in seconds without staff needing to walk aisles or scan individual items.
04
Receiving and Put-Away
Captures every tagged item at goods-in automatically, logging receipts and directing put-away without manual entry.
05
Shipment Tracking
Monitors tagged shipments from goods-in through dispatch, giving operations teams a real-time view of every item.
06
Access Control and Security
Monitors tagged assets and personnel moving through controlled zones, triggering alerts for unauthorized movement.
Datasheet Reference
Detailed Technical
Mechanical Specifications
Form Factor and Housing
- Dimensions (L x W x D)
- Weight
- 1995.8 g (4.4 lbs)
- Antenna Ports
- Connector Type
- RP-TNC Female
- IP Rating
- IP53
- Power Source
- +24 Vdc
Electrical Specifications
RF Performance Parameters
- Air Interface Protocol
- EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
- Max Read Distance
- Transmit Power
- +33 dBm
- Max Receive Sensitivity
- -84.5 dBm Monostatic
- Bistatic Sensitivity
- -105 dBm
- GPIO
- 4 Inputs / 4 Outputs
- Data Interface
- Ethernet, Serial
Explore Our Range Of
RFID
From compact desktop readers to enterprise fixed readers and long-range handhelds, GreenFuturz has a reader for every RFID deployment.
Zebra Authorized Reseller

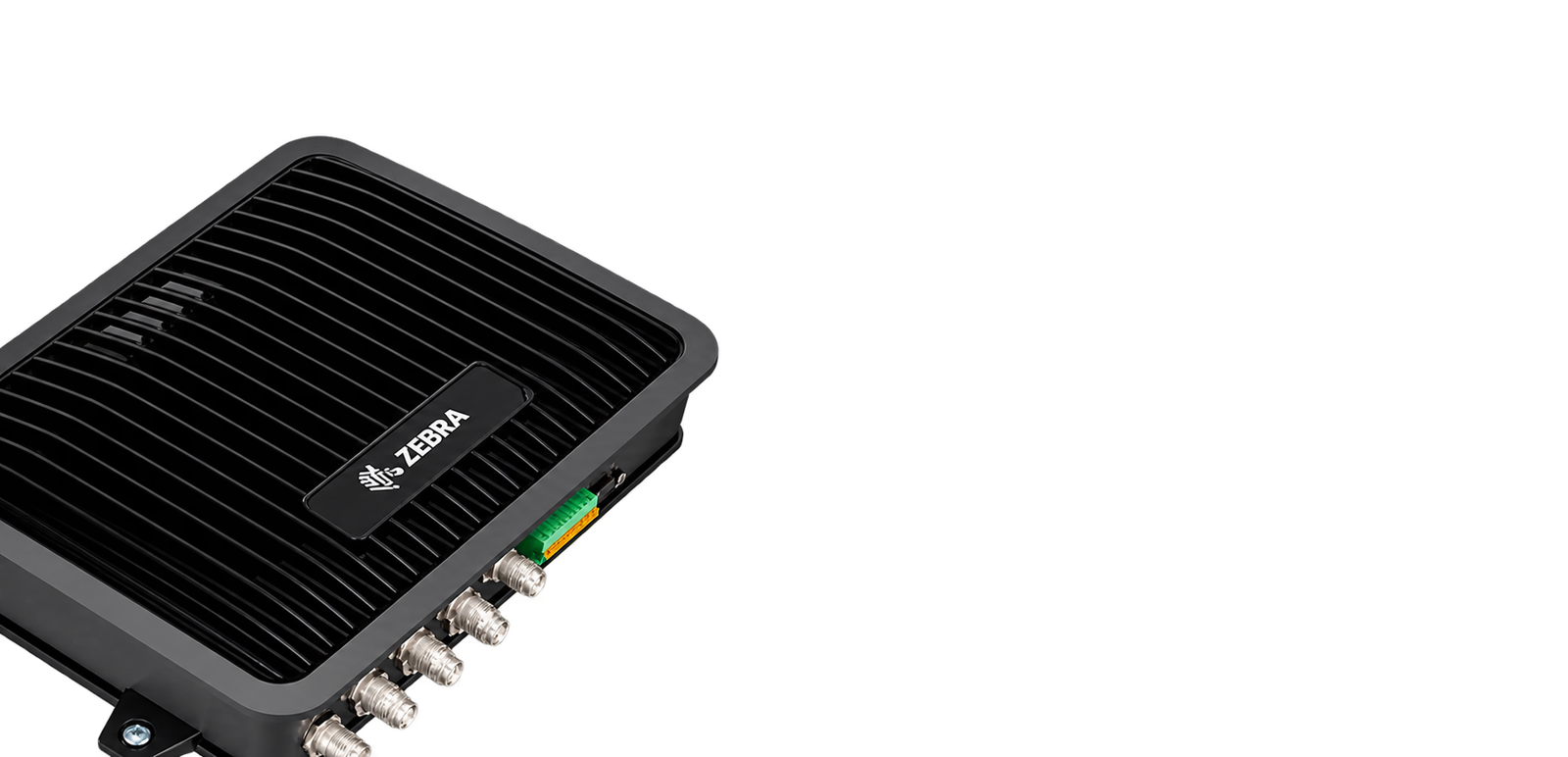

FX9600 RFID
FX9600 RFID
4/8 Port Reader
The Zebra FX9600 is an enterprise-grade fixed RFID reader available in 4-port and 8-port configurations. It reads hundreds of tags simultaneously across large open areas, handles dense tag environments without collision and integrates directly into your existing infrastructure via Ethernet or Serial. Available in India at competitive prices through GreenFuturz, an authorized Zebra distributor.
Authorized Zebra Distributor
Competitive Pricing in India
Download Datasheet
4 or 8 antenna ports
Choose the configuration that fits your site — 4-port for focused zones or 8-port for large open coverage.
20 metre read range
Reads tagged items across large open warehouse floors and manufacturing zones without any repositioning.
Dense reader mode
No tag collision even in densely tagged environments, accurate bulk reading across high-volume operations.
IP53 rugged housing
Protected against dust and water spray for reliable fixed deployment in industrial environments.
WHERE IT WORKS
Enterprise Reads.
At Scale.
01
Warehouse Management
Reads pallets and cartons at dock doors simultaneously, giving operations teams a live view of goods movement.
02
Large Manufacturing
Tracks WIP components across multiple assembly stations in real time with complete production traceability.
03
Stock Check and Audit
Reads an entire zone of tagged inventory in seconds, eliminating manual scanning during cycle counts.
04
Receiving and Put-Away
Captures every tagged item at goods-in automatically and routes put-away instructions without manual entry.
05
Shipment Tracking
Monitors every tagged shipment from receiving through dispatch, giving logistics teams complete visibility.
06
Retail Inventory
Installed above retail floors or stockrooms, it counts every tagged garment and product continuously.
Datasheet Reference
Detailed Technical
Mechanical Specifications
Form Factor and Housing
- Dimensions (L x W x D)
- Weight
- 1995.8 g (4.4 lbs)
- Antenna Ports
- Bistatic Option
- 4 Bistatic Ports
- IP Rating
- IP53
- Power Source
- +24 Vdc
Electrical Specifications
RF Performance Parameters
- Air Interface Protocol
- EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
- Max Read Distance
- Transmit Power
- +33 dBm
- Max Receive Sensitivity
- -84.5 dBm Monostatic
- Bistatic Sensitivity
- -105 dBm
- GPIO
- 4 Inputs / 4 Outputs
- Data Interface
- Ethernet, Serial
Explore Our Range Of
RFID
From compact desktop readers to enterprise fixed installations, GreenFuturz manufactures and supplies RFID readers for every deployment scale.
Zebra Authorized Reseller
RFID Long Range
RFID Long Range
Handheld Reader

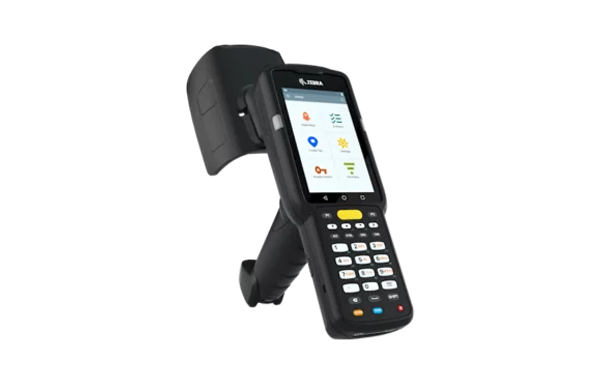

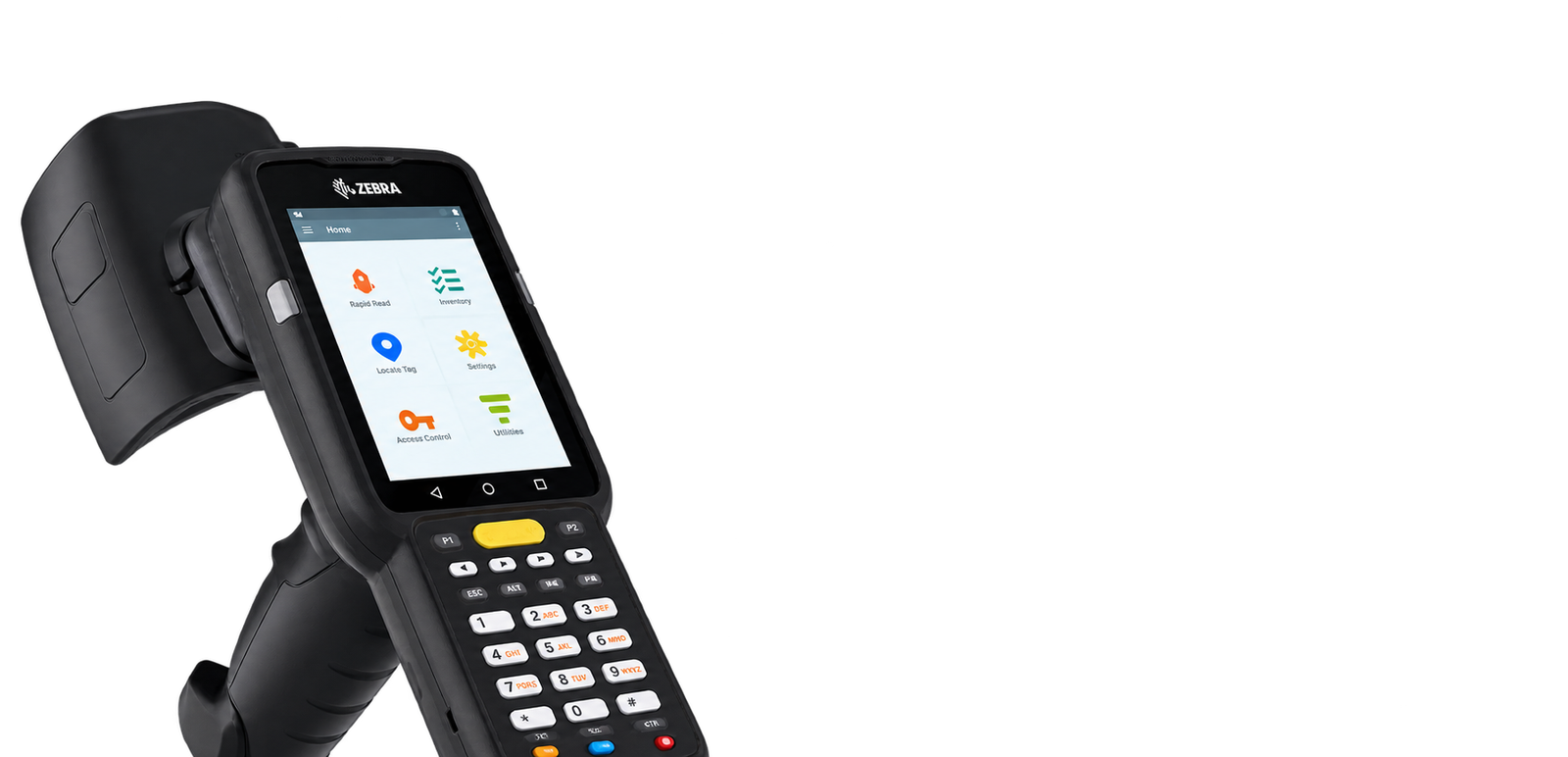

The Zebra MC3330XR puts enterprise RFID reading in your hands. It reads over 900 tags per second from up to 6 metres away, runs on Android for familiar app deployment and combines RFID and barcode scanning on a single trigger pull. Light enough to carry all day and tough enough for retail floors, warehouses and clinical environments. Available in India through GreenFuturz, an authorized Zebra distributor.
Authorized Zebra Distributor
Competitive Pricing in India
Download Datasheet
6 metre read range
Reads RFID tags from across the room while walking, no need to approach each item individually.
900 plus tags per second
Captures bulk tagged inventory in seconds, significantly faster than any barcode-based counting workflow.
Android platform
Run enterprise RFID applications on a familiar Android interface with Corning Gorilla Glass display.
RFID and barcode in one
Point and trigger for RFID or barcode reads from a single device, no tool switching required.
WHERE IT WORKS
Walk the Floor.
Read Everything.
01
Retail Stores
Walk the sales floor and count every tagged garment in the aisle without removing a single item from the rack.
02
Jewelry Stores
Audit an entire display case of tagged jewelry pieces in seconds, giving staff accurate stock counts without manual logging.
03
Healthcare Systems
Tracks medical equipment, surgical trays and consumables across clinical areas without disrupting patient workflows.
04
Asset Management
Walks through a facility and captures every tagged asset location in real time, building an accurate asset register on the move.
05
Inventory and Cycle Counting
Replaces clipboards and barcode guns for cycle counting, reading hundreds of items per pass and posting results instantly.
06
Pharmaceutical Inventory
Verifies tagged pharmaceutical stock in storage rooms accurately, reducing errors and ensuring regulatory compliance.
Datasheet Reference
Detailed Technical
Physical Specifications
Form Factor and Display
- Dimensions (L x W x D)
- Weight
- 665 g with handstrap
- Display
- 4.0 inch WVGA Capacitive
- Display Protection
- Corning Gorilla Glass
- Keypad Options
- 29, 38 or 47 Key
- Expansion
- Micro SD up to 32 GB
- Connectivity
- USB 2.0, WLAN, Bluetooth
RFID Specifications
RF Performance Parameters
- RFID Standards
- EPC Class 1 Gen 2, EPC Gen2 V2, ISO-18000-63
- Nominal Read Range
- RFID Power Output
- 0 dBm to +30 dBm
- Antenna Type
- Integrated Circular Polarized
- Frequency Range
- 865 to 928 MHz
- Read Rate
- 900 plus tags per second
- Scan Engine
- SE4750SR with LED Aimer
Explore Our Range Of
RFID
From compact desktop readers to enterprise fixed installations, GreenFuturz manufactures and supplies RFID readers for every deployment scale.
Zebra Authorized Reseller

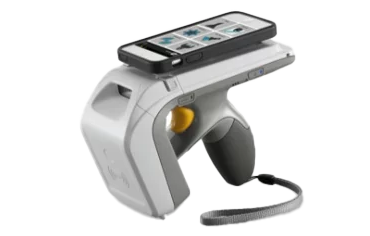

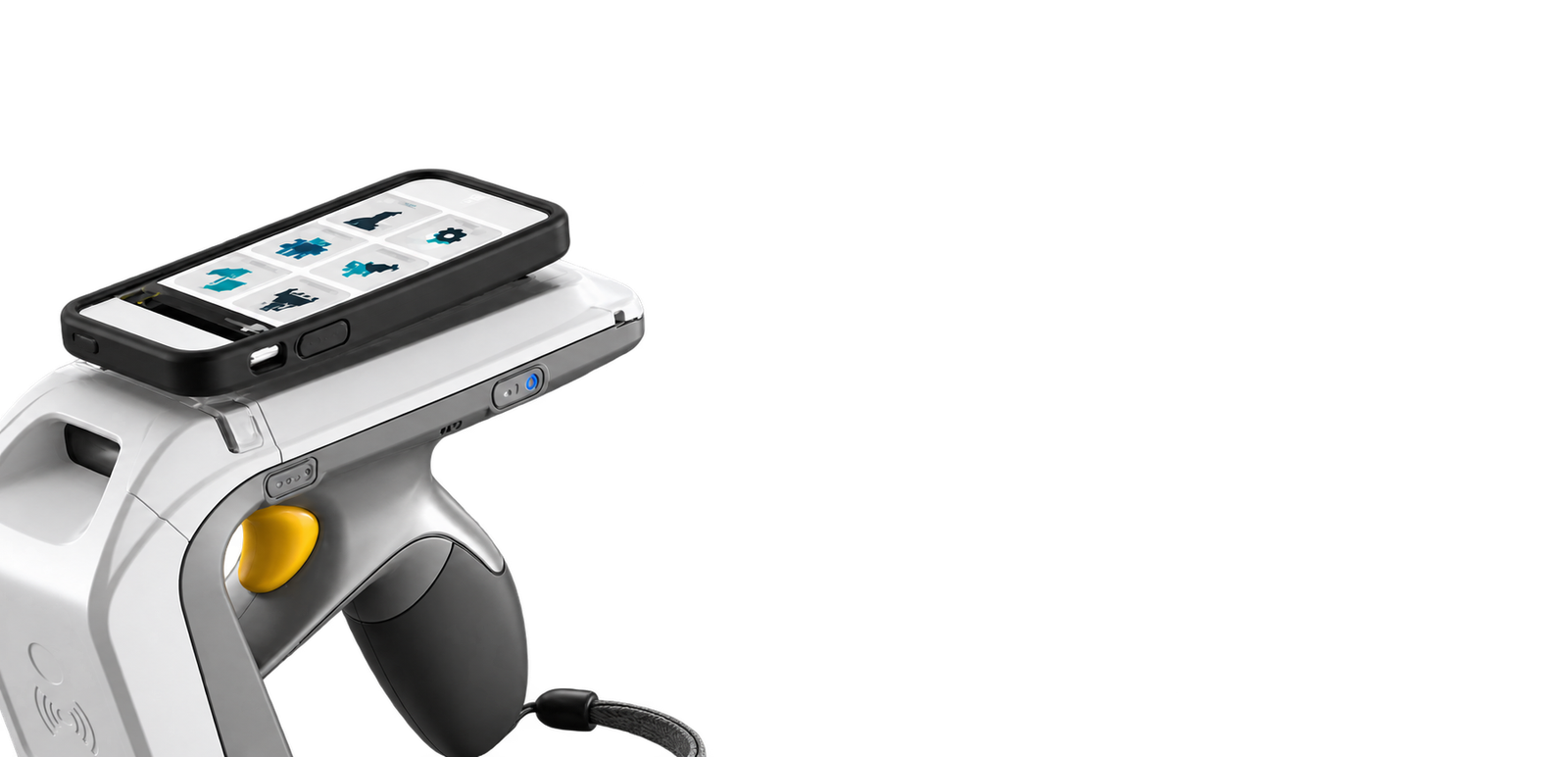

RFD8500 UHF
RFD8500 UHF
Handheld Reader
The Zebra RFD8500 is an enterprise-class UHF RFID reader sled that attaches to compatible Zebra and third-party Android, iOS and Windows mobile devices. Attach it as a sled for single-handed reading, or put the host device in a pocket and run the RFD8500 in standalone mode. With 900 plus tags per second, 6 metre read range and 40,000 tag batch memory, it brings enterprise RFID capability to the devices your team already carries. Available in India through GreenFuturz, an authorized Zebra distributor.
Authorized Zebra Distributor
Competitive Pricing in India
Download Datasheet
Android, iOS and Windows
Attaches to compatible Zebra and third-party mobile devices across all major platforms for maximum investment protection.
900 plus tags per second
AutoMac self-optimizing radio automatically adapts for maximum read and write speeds in any environment.
40,000 tag batch memory
Stores 40,000 RFID reads and 500 barcodes offline and syncs to the host device whenever a connection is available.
IP52 drop rated
Withstands multiple 1.2 metre drops to concrete and 1,000 tumbles for reliable all-day use in demanding environments.
WHERE IT WORKS
Enterprise RFID.
Your Way.
01
Retail Stores
Attach to any compatible device and walk the sales floor, reading every tagged product at 900 plus tags per second.
02
Apparel Stores
Count tagged garments aisle by aisle in sled or standalone mode without disrupting shoppers or pulling items off racks.
03
Jewelry Stores
Audit tagged display cases quickly and accurately with a compact sled that mounts cleanly to your existing mobile device.
04
Stock Check
Batch-store 40,000 RFID reads offline and sync to your WMS on return, so cycle counts run without needing network coverage.
05
Asset Management
Track tagged assets across offices and facilities in standalone mode with the host device safely in a pocket or holster.
06
Goods Receiving
Capture every tagged item at goods-in and post receipts instantly to your backend via Bluetooth 2.1 as soon as you are in range.
Datasheet Reference
Detailed Technical
RFID Performance
RF and Read Parameters
- RFID Standards
- EPC Class 1 Gen 2, EPC Gen2 V2
- RFID Engine
- Zebra Proprietary Radio Technology
- Fastest Read Rate
- Nominal Read Range
- RF Output (EU)
- 4.5 to 34.5 dBm
- Batch Memory
- 40,000 plus RFID Tags, 500 Barcodes
- Scanner Option
- RFID only or RFID with SE4710 Imager
Physical and Environmental
Form Factor and Durability
- Dimensions (H x W x L)
- Weight
- ~435 g (imager version)
- Battery
- PowerPrecision Li-Ion 4,410 mAh
- IP Rating
- IP52
- Drop Rating
- Multiple 1.2 m drops to concrete
- Operating Temp.
- -10°C to 40°C
- Compatible OS
- Android 4.4 or iOS 8 and above
Explore Our Range Of
RFID
From compact desktop readers to enterprise fixed installations, GreenFuturz manufactures and supplies RFID readers for every deployment scale.
Zebra Authorized Reseller

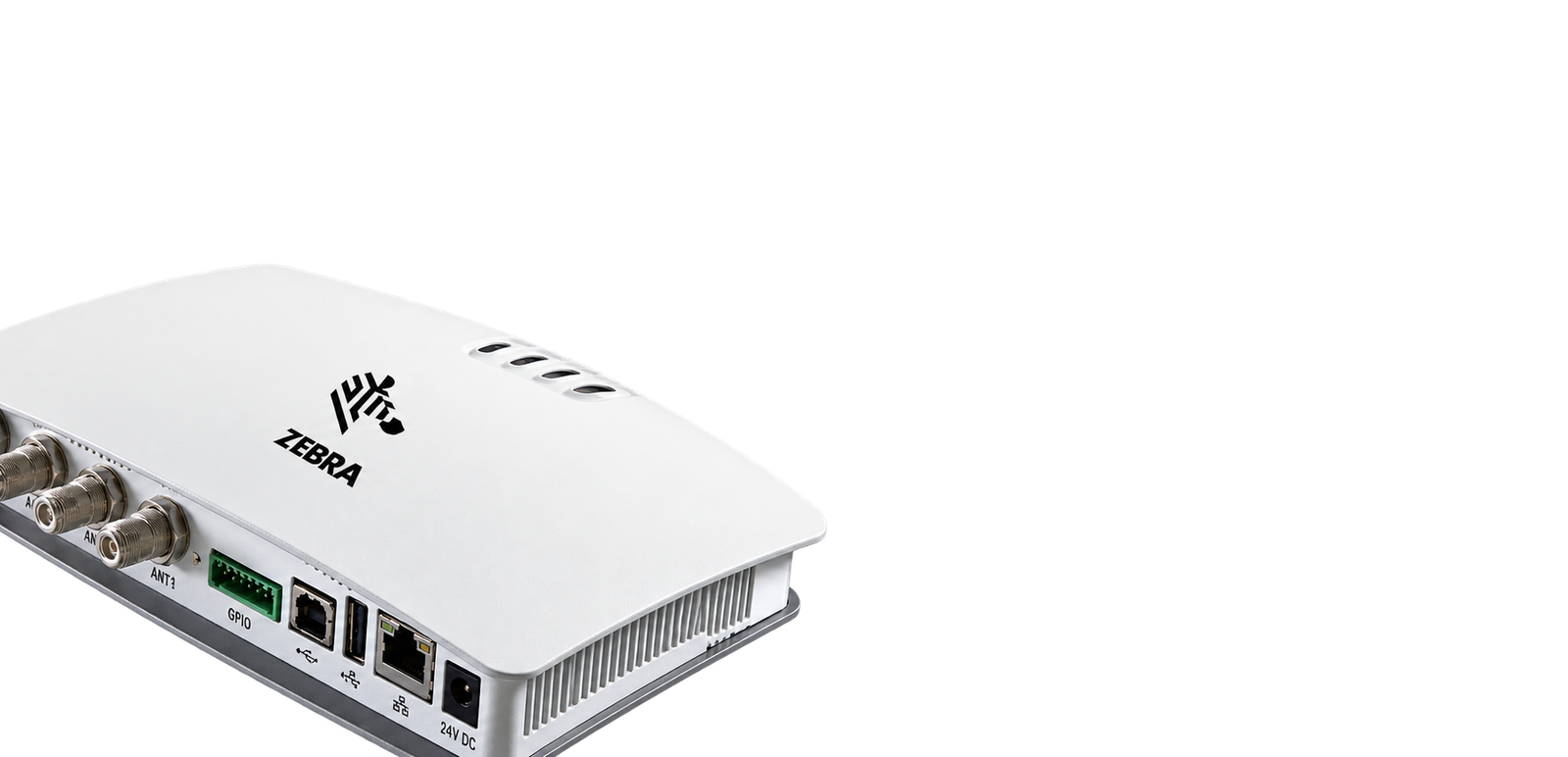

FX7500 RFID UHF
FX7500 RFID UHF
Fixed Reader

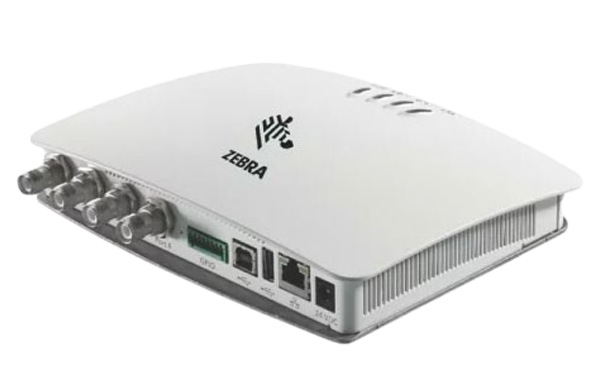

The Zebra FX7500 is a compact, powerful fixed RFID reader with a Linux-based architecture that delivers fast, reliable reads in challenging environments. It connects and powers via a single Ethernet cable through PoE, supports up to 4 antenna ports and reads tagged items up to 15 metres away. Available in India at competitive prices through GreenFuturz, an authorized Zebra distributor.
Authorized Zebra Distributor
Competitive Pricing in India
Download Datasheet
PoE single cable install
Powers and connects over a single Ethernet cable, no separate power supply or wiring runs needed.
15 metre read range
Accurate reads across large open warehouse floors, dock doors and manufacturing entry points.
Linux-based platform
Flexible open architecture for custom application deployment with reliable performance in tough conditions.
4 antenna ports
Supports 4 monostatic antenna connections for focused zone coverage across portals and doorways.
WHERE IT WORKS
Compact Reader.
Maximum Coverage.
01
Asset Tracking
Tracks every tagged asset location in real time as items move through facilities, buildings and storage areas.
02
Warehouse Management
Reads pallets and cartons at dock doors automatically, giving operations teams a live view of goods movement.
03
Retail Systems
Installed above sales floors for continuous product counting, so stocktake runs automatically without staff involvement.
04
Manufacturing Industries
Monitors WIP components across assembly lines with live traceability data at each stage of production.
05
Logistics
Captures every tagged shipment at collection and delivery points automatically without any manual scanning.
06
Supply Chain Portals
Reads tagged goods through entry and exit gates without slowing down vehicle or foot traffic at any point.
Datasheet Reference
Detailed Technical
Mechanical Specifications
Form Factor and Housing
- Dimensions (L x W x D)
- Weight
- 861.8 g (1.9 lbs)
- Antenna Ports
- Data Interface
- Ethernet with PoE Support
- Power Source
- PoE or External Power Supply
- GPIO
- 2 Inputs / 3 Outputs
Electrical Specifications
RF Performance Parameters
- Air Interface Protocol
- EPCglobal UHF Class 1 Gen 2
- Operating Frequency
- 865 to 867 MHz (EU)
- Max Read Distance
- Transmit Power
- +31.5 dBm
- Max Receive Sensitivity
- -82 dBm
- Platform
- Linux-Based Architecture
Explore Our Range Of
RFID
From compact desktop readers to enterprise fixed installations, GreenFuturz manufactures and supplies RFID readers for every deployment scale.
Zebra Authorized Reseller

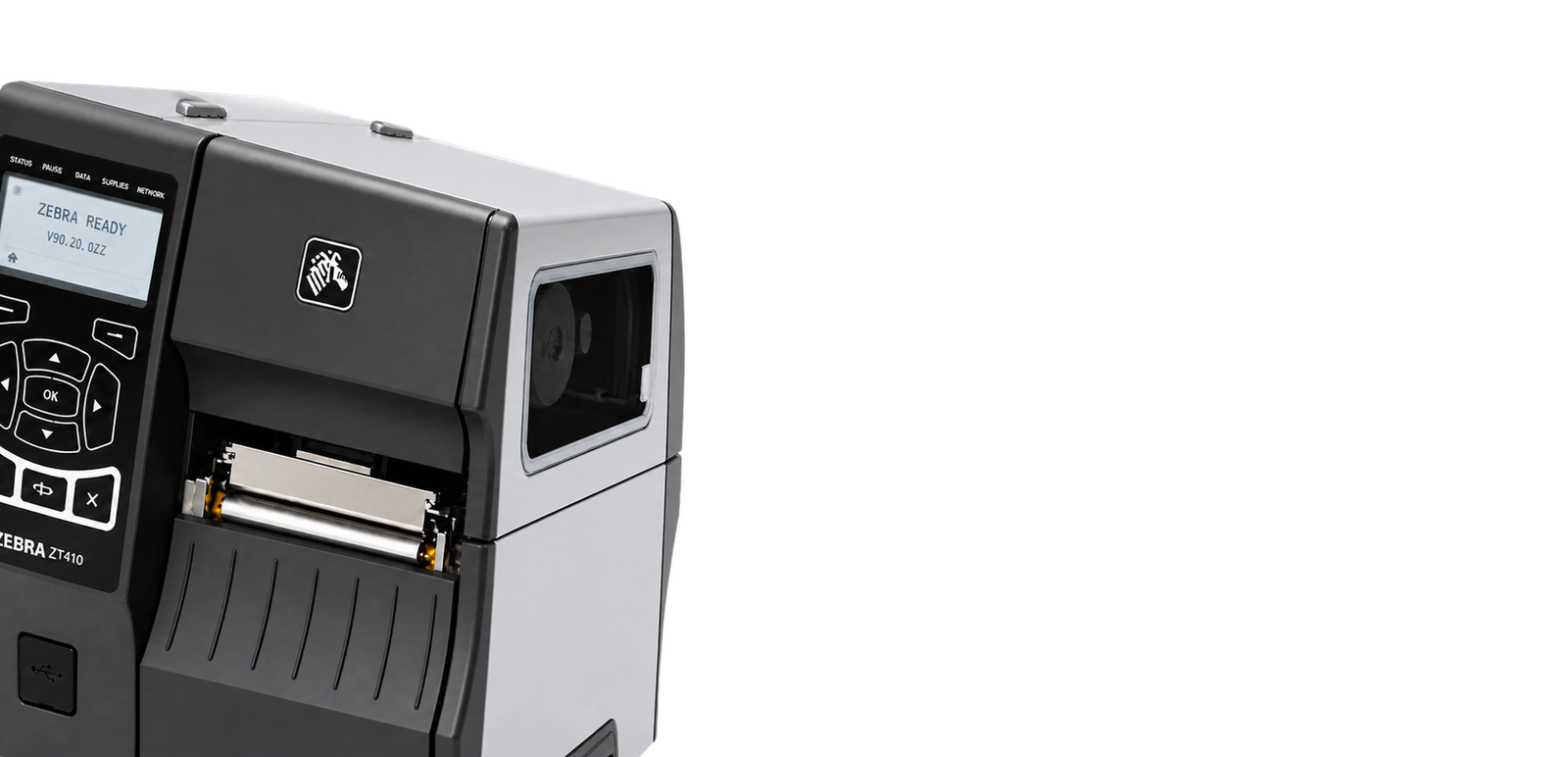

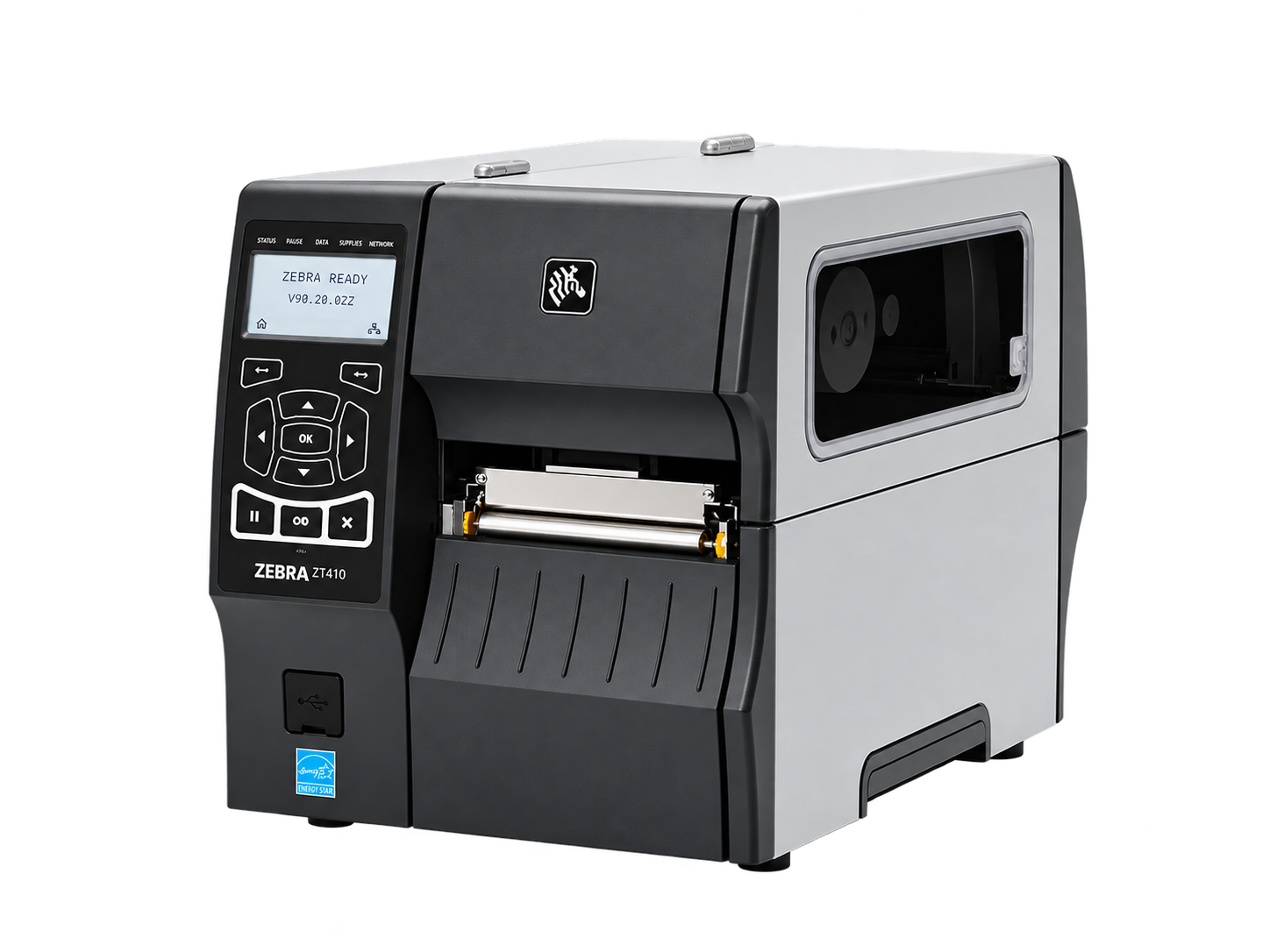

ZT410 Industrial
ZT410 Industrial
RFID Printer
The Zebra ZT410 is an industrial thermal printer built for high-volume label and RFID tag production. It supports both thermal transfer and direct thermal printing at up to 14 inches per second, with optional integrated UHF EPC Gen 2 RFID encoding that prints and programs RFID tags in a single pass. Available in India through GreenFuturz, an authorized Zebra distributor.
Authorized Zebra Distributor
ENERGY STAR Qualified
Download Datasheet
Thermal transfer and direct thermal
Supports both print modes in one device, selectable per job for maximum media and ribbon flexibility.
Up to 14 inches per second
Industrial print speeds up to 356 mm per second at 203 dpi for high-volume label production without bottlenecks.
Integrated RFID encoding
Optional ThingMagic UHF EPC Gen 2 encoder prints and programs RFID tags in a single pass with Adaptive Encoding Technology.
Link-OS enabled
ZebraNet Print Server with Ethernet and Bluetooth 2.1 for remote management, Web View and alert notifications.
WHERE IT WORKS
Print Fast. Encode Right.
01
Warehouse Label Printing
Prints barcode and RFID labels for pallets, cartons and bin locations at up to 14 inches per second.
02
Retail RFID Tag Production
Encodes and prints EPC Gen 2 RFID tags for apparel and merchandise in a single pass.
03
Manufacturing Line Labeling
Produces durable thermal transfer labels for WIP components and finished goods at speed.
04
Asset Tagging
Prints and encodes RFID asset labels simultaneously, eliminating separate printing and encoding steps.
Detailed Technical
Print Specifications
Performance and Resolution
- Print Method
- Thermal Transfer and Direct Thermal
- Standard Resolution
- Optional Resolutions
- 300 dpi or 600 dpi
- Max Print Speed (203 dpi)
- Max Print Width
- 4.09 in (104 mm)
- Media Types
- Continuous, Die-cut, Notch, Black-mark
- Programming Languages
- ZPL, ZPL II, EPL
Connectivity and Physical
Interfaces and Form Factor
- Communication
- USB 2.0, RS-232, 10/100 Ethernet
- Wireless
- Bluetooth 2.1 (including Apple)
- RFID (Optional)
- Dimensions (H x W x D)
- 324 mm x 269 mm x 495 mm
- Weight
- 16.33 kg (36 lbs)
- Power Supply
- 100-240 VAC, Auto-switching
- Memory
- 256 MB RAM, 512 MB Flash
Explore Our Range Of
RFID
From industrial thermal printers to wearable barcode computers and dual-sided card printers, GreenFuturz supplies Zebra printing solutions for every workflow.
Zebra Authorized Reseller

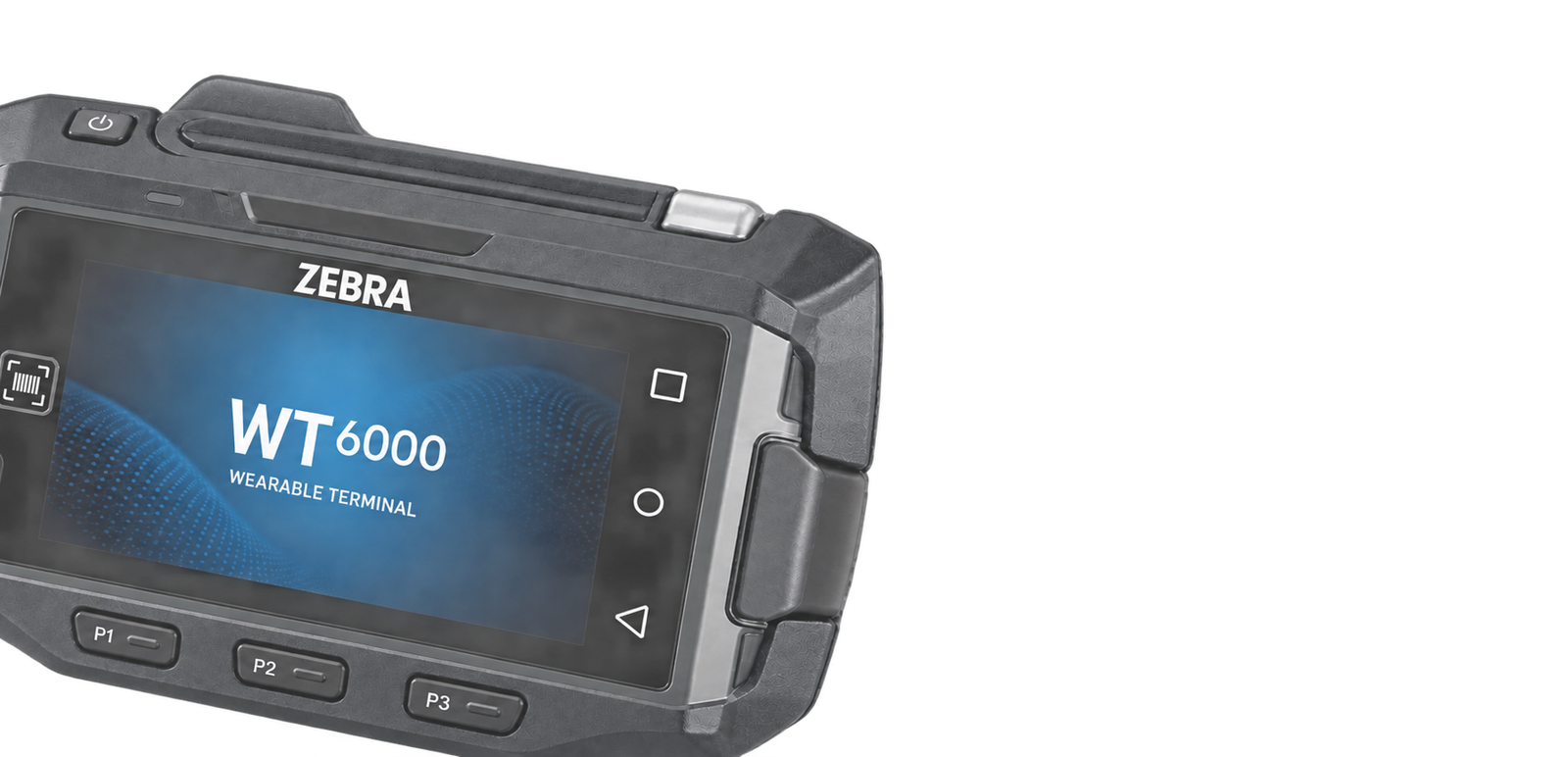

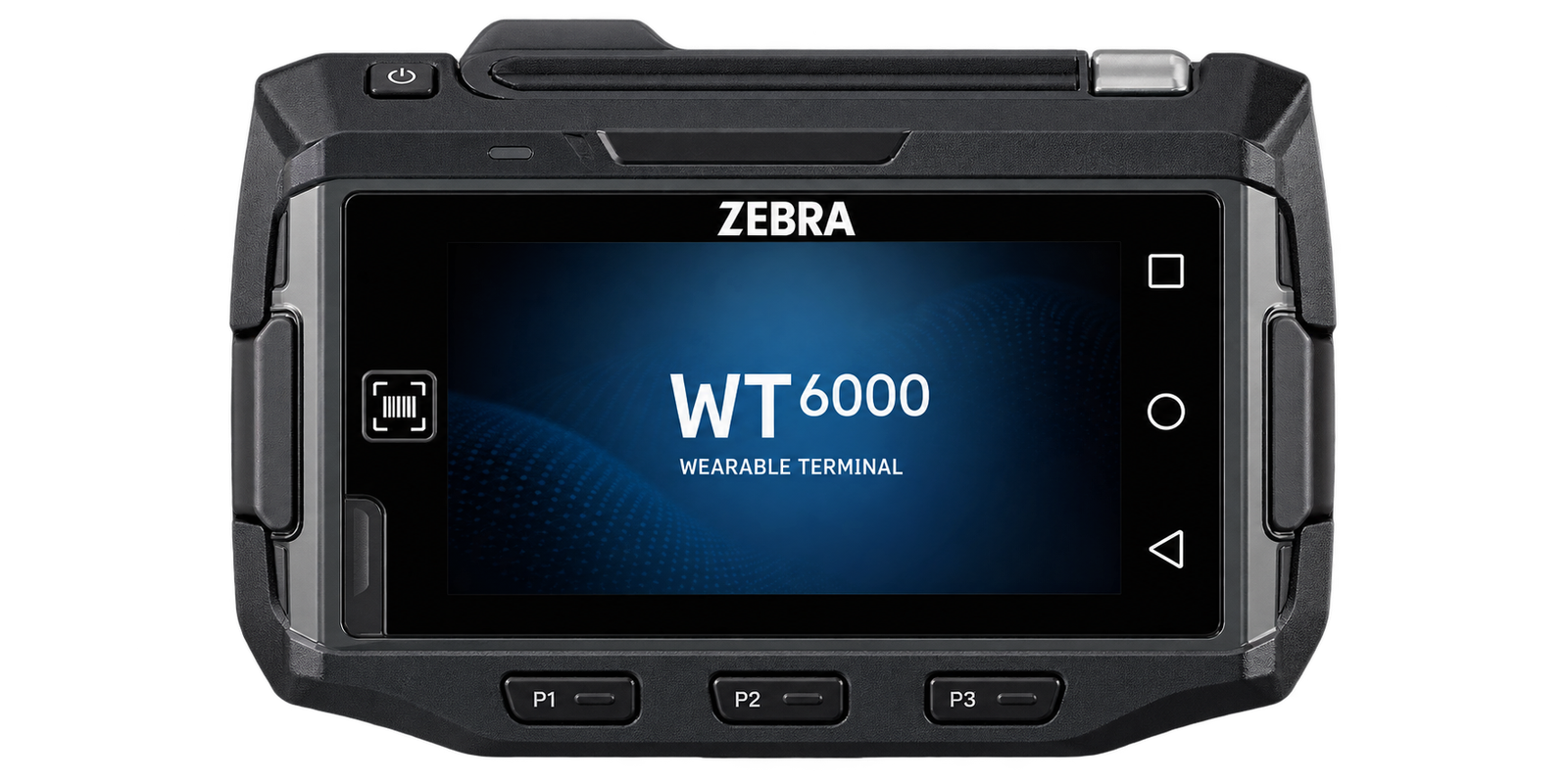

WT6000 Wearable
WT6000 Wearable
Barcode Computer
The Zebra WT6000 is an Android wearable computer built for hands-free enterprise mobility. It is 27% lighter and 36% less volume than prior generation Zebra wearables, with a Corning Gorilla Glass 3 touchscreen that works with gloves and in wet conditions. Available in India through GreenFuturz, an authorized Zebra distributor.
Authorized Zebra Distributor
Competitive Pricing in India
Download Datasheet
27% lighter, 36% less volume
Breakthrough ergonomic design smaller and lighter than prior generation Zebra wearables for all-day comfort on any size arm.
Corning Gorilla Glass 3 display
Scratch-resistant multi-touch touchscreen works with gloves and in wet conditions with pinch-to-zoom and swipe support.
IP65 sealed, drop and tumble rated
Dustproof and sprayproof, handles subzero freezer temperatures, multiple 4 ft drops to concrete and 1,000 tumbles at 0.5 m.
NFC Tap-to-Pair
Instantly pairs with Bluetooth ring scanners, headsets and printers at the start of every shift with a single tap.
WHERE IT WORKS
Hands-Free. Wherever Work Happens.
01
Warehouse Picking and Put-Away
Workers keep both hands free for picking and putting away items, reading barcodes from the wrist throughout the operation.
02
Goods Receiving
Scan incoming shipments at receiving docks while handling goods without stopping to operate a handheld device.
03
Retail Inventory Management
Walk retail floors for price audits, inventory counts and in-store communications with both hands free for handling merchandise.
04
Manufacturing Parts Tracking
Track parts through manufacturing stages and manage replenishment with both hands free on the assembly line.
Detailed Technical
Physical and Performance
Form Factor and Computing Power
- Dimensions (L x W x D)
- Weight
- 245 g (standard battery)
- Display
- 3.2 in. WVGA, Gorilla Glass 3, 400+ NITs
- Processor
- Quad-Core 1 GHz
- Operating System
- Android 5.1 / 7.1 with Mobility Extensions (Mx)
- Memory (Android N)
- 8 GB Flash, 2 GB RAM
- Power
- Standard 3350 mAh / Extended 5000 mAh
Connectivity and Environment
Wireless and Durability
- WLAN
- Bluetooth
- 4.1 Smart (Class 1 and 2)
- NFC
- Multiprotocol, Tap-to-Pair
- IP Rating
- IP65
- Operating Temperature
- -30°C to +50°C
- Drop Rating
- Multiple 4 ft drops to concrete
- Tumble Spec
- 1,000 tumbles at 0.5 m
Explore Other
From industrial thermal printers to dual-sided card printers, GreenFuturz supplies Zebra printing solutions for every workflow.
Zebra Authorized Reseller

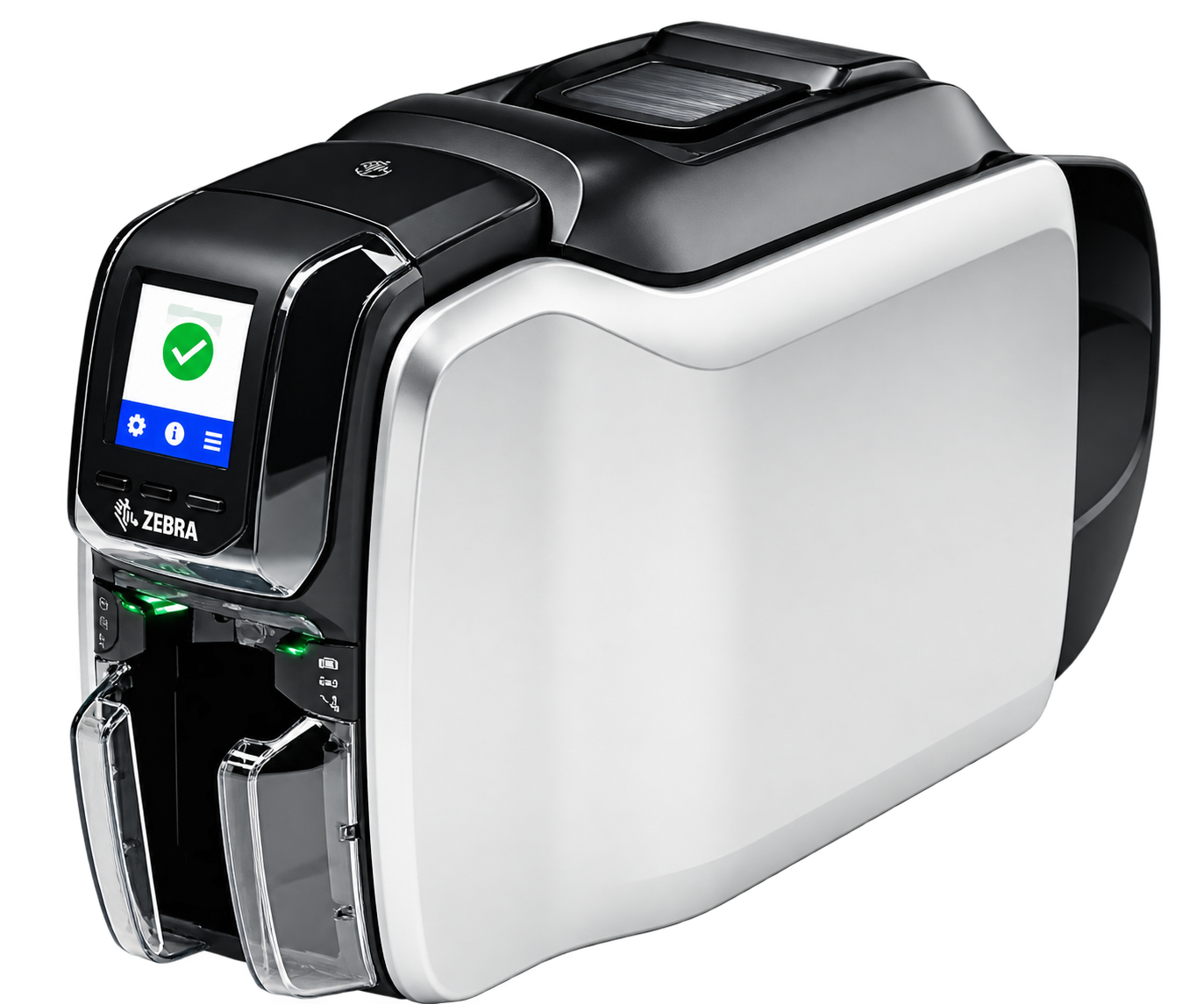

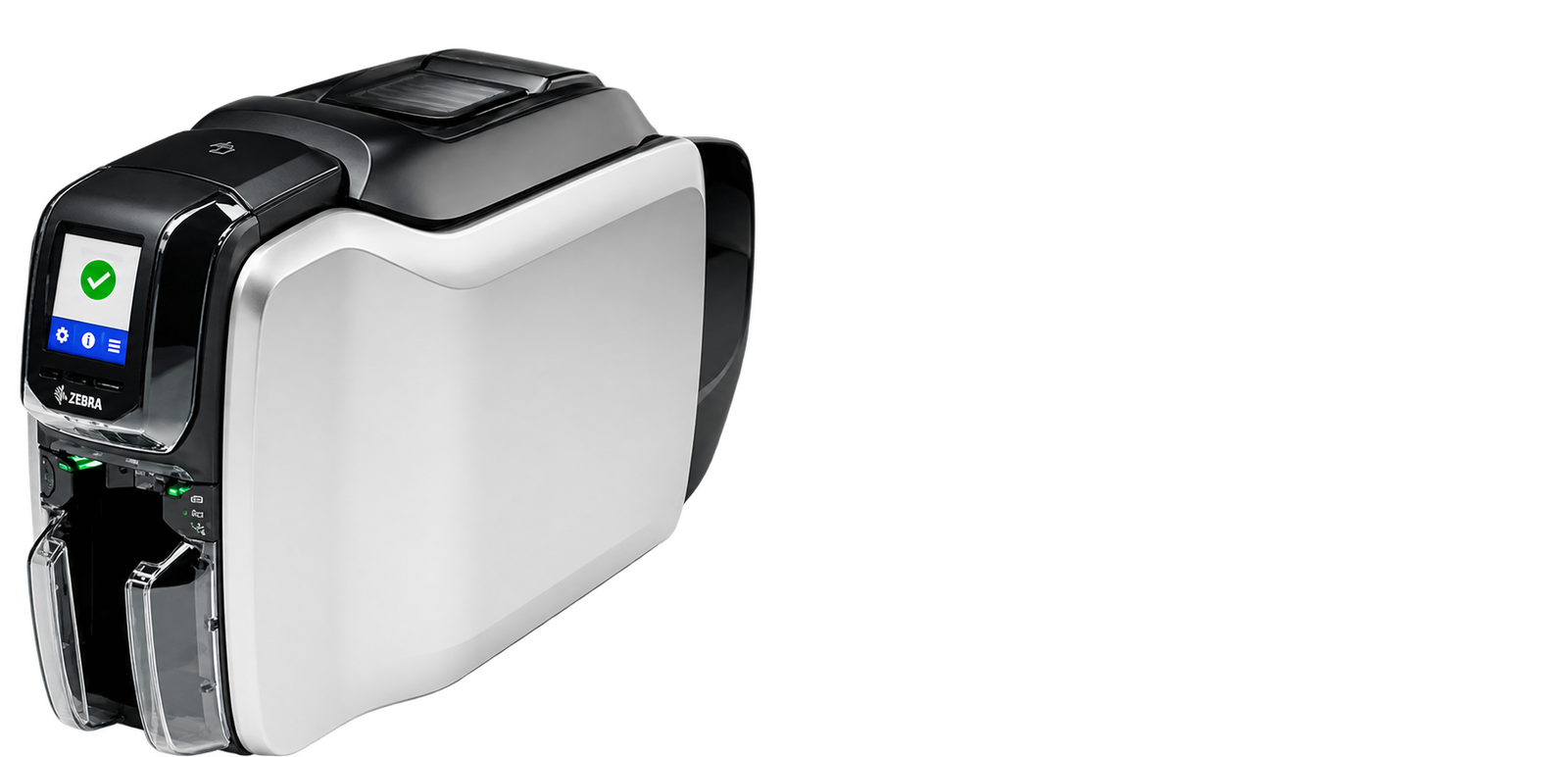

ZC300 Dual Sided
ZC300 Dual Sided
Card Printer
The Zebra ZC300 is a dual-sided card printer that prints single or dual-sided full-color or monochrome cards edge-to-edge at 300 dpi. The auto-adjusting card feeder handles card thickness from 10 to 40 mil without manual adjustment. Plug it in and start printing the same day it arrives. Available in India through GreenFuturz, an authorized Zebra distributor.
Authorized Zebra Distributor
2-Year Unlimited Warranty
Download Datasheet
300 dpi edge-to-edge printing
Dye-sublimation thermal transfer at 300 dpi on single or dual-sided cards, edge-to-edge on standard CR-80 media.
AES encryption and host authentication
Government-grade AES data encryption protects sensitive card data during printing with printer-to-host authentication.
Multi-format encoding
Magnetic stripe (ISO 7811), MIFARE 13.56 MHz contactless, ISO 7816 contact and SAM socket for payment card creation.
Plug and play deployment
Designed to work right out of the box — no complicated setup. The auto-adjusting feeder handles 10 to 40 mil card stock without any manual adjustment.
WHERE IT WORKS
One Printer. Every Card.
01
Employee Badges
Print full-color employee ID badges with access control credentials, magnetic stripe or contactless encoding in a single pass.
02
Education ID Cards
Produce access control and identification cards for K-12 and higher education campuses with encoded facility access credentials.
03
Membership and Event Cards
Print membership cards, event passes, season passes and guest cards with edge-to-edge full-color printing.
04
Financial Services Cards
Create credit and debit cards with contact, contactless or magnetic stripe encoding and government-grade AES data encryption.
Detailed Technical
Print Specifications
Resolution and Throughput
- Print Method
- Dye-sublimation Thermal Transfer
- Print Resolution
- Print Modes
- Single and Dual-sided, Color or Monochrome
- Print Area
- Edge-to-Edge on CR-80 (ISO 7810 ID-1)
- Speed (Single YMCKO)
- Speed (Dual YMCKOK)
- 140 cards per hour
- Speed (Single Monochrome)
- 900 cards per hour
- Card Thickness
- 10 to 40 mil
Physical and Connectivity
Form Factor and Interfaces
- Dimensions (Dual Sided)
- Weight (Dual Sided)
- 4.4 kg
- Hopper Capacity
- 100 cards input and output
- Memory
- 2 GB Flash
- Communication
- USB 2.0, Ethernet 10/100
- Wireless (Optional)
- 802.11ac
- Encoding
- Magnetic Stripe, MIFARE 13.56 MHz, ISO 7816, SAM
- Operating Temperature
- 15°C to 35°C
Explore Other
From industrial thermal printers to wearable barcode computers, GreenFuturz supplies Zebra printing solutions for every workflow.
GreenFuturz Original

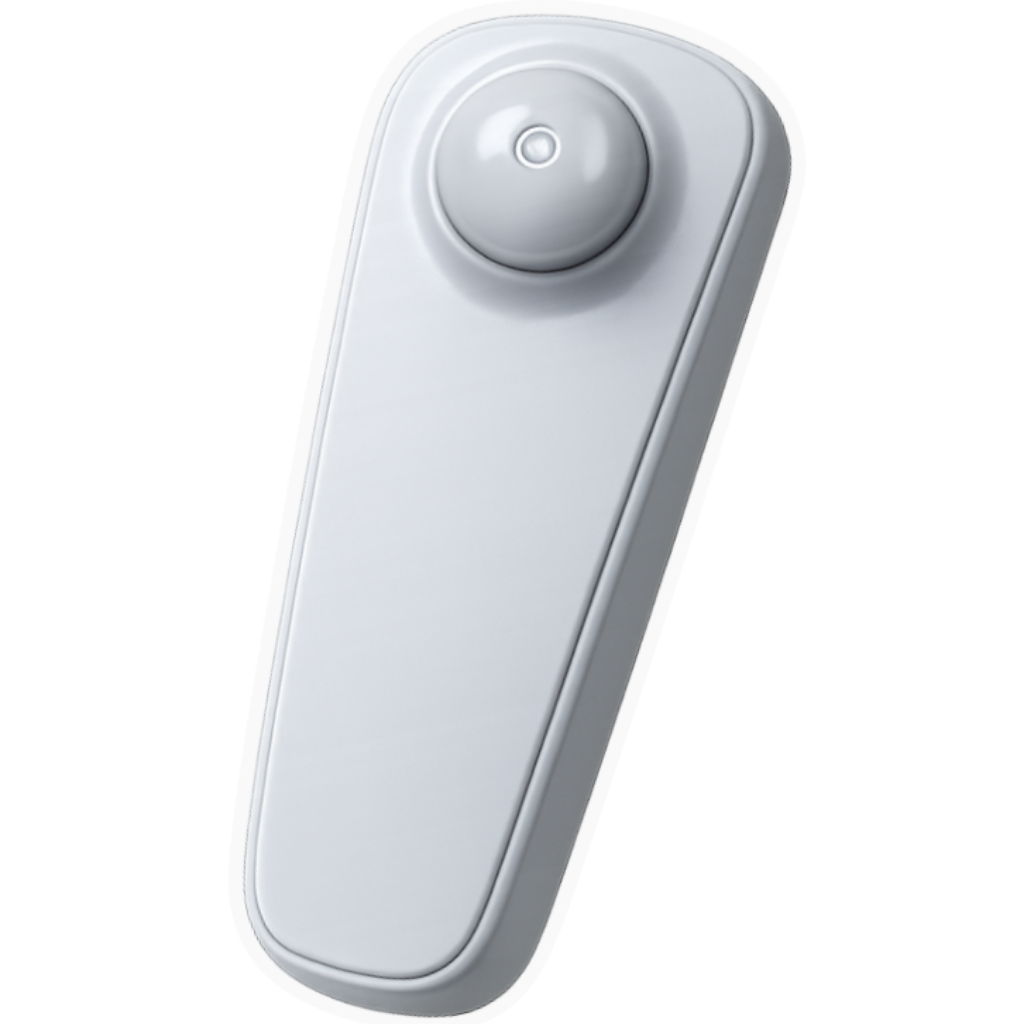

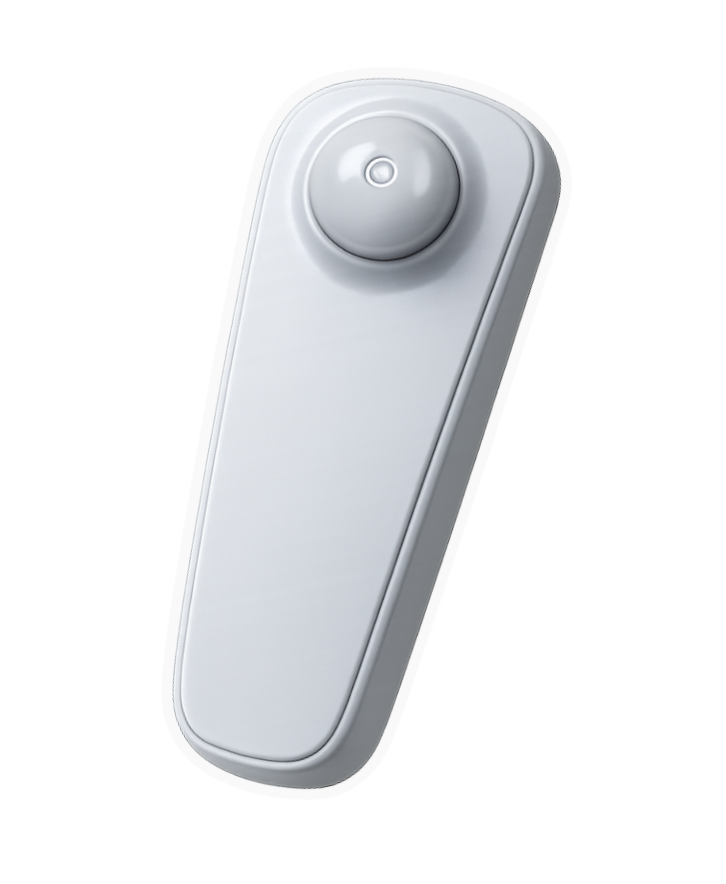

RFID Retail Tag
The GreenFuturz RFID Retail Tag is a compact, reusable UHF tag built for apparel and garment stores. At just 55 x 25 mm and 4g, it attaches easily to any garment and reads from over 2 metres away. Built on the Monza R6 chip with EPC Class 1 Gen 2 protocol, it integrates with EAS gates for anti-theft protection and enables bulk inventory counting, fast billing and accurate stock management across your entire store.
Monza R6 Chip
EAS Gate Compatible
Reusable Design
Download Datasheet
THE RETAIL JOURNEY
From Tag to Action
One Tag. A Smarter Retail Journey.
01
Attach
Quick and easy to attach on garments.
02
Count
Bulk inventory in seconds.
03
Bill
Faster, smoother checkout.
04
Secure
Works with EAS gates for anti-theft protection.
05
Reuse
Built for long-term, multi-use operation.

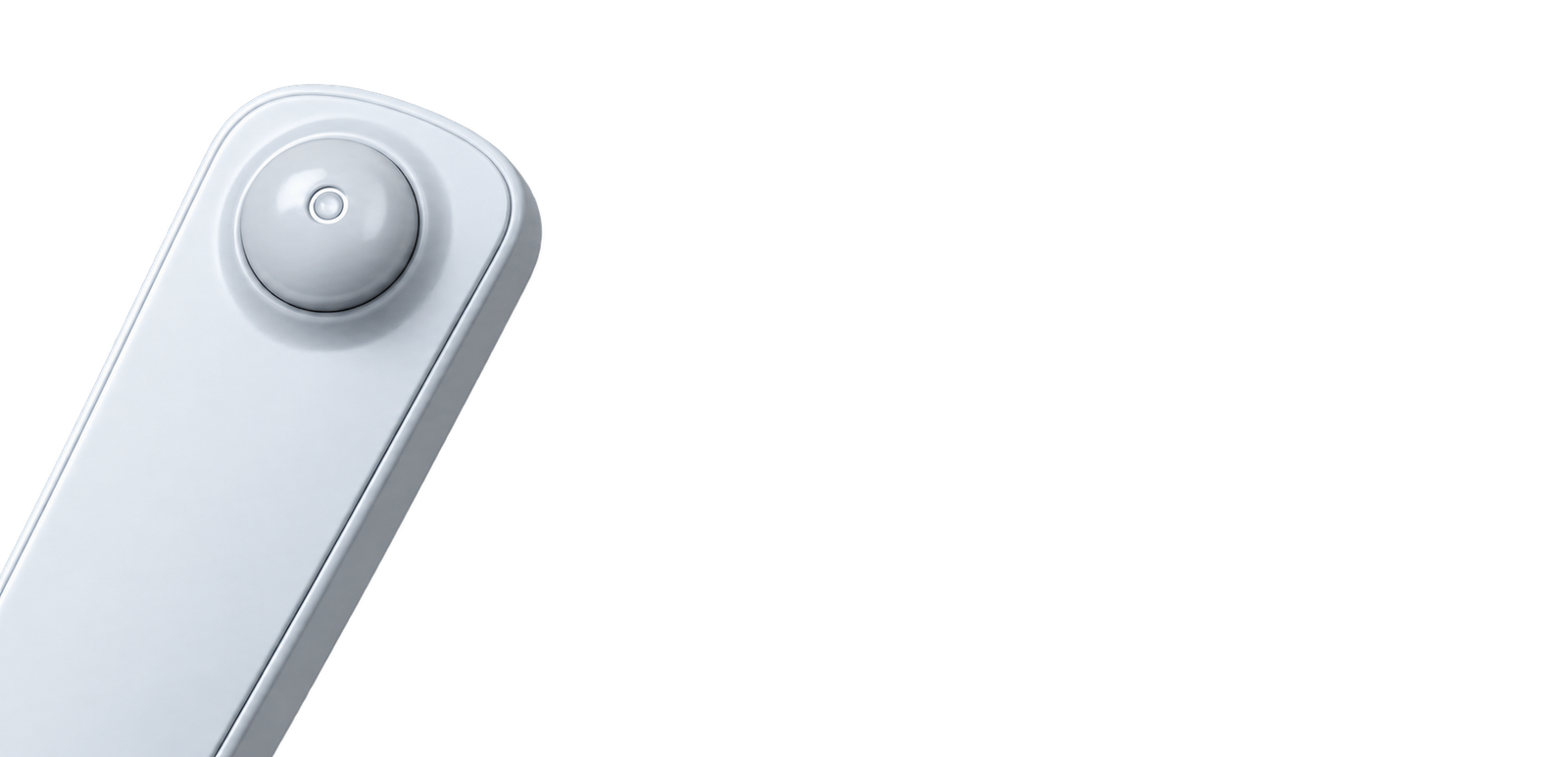

WHAT SETS IT APART
Built to Perform.
Reusable
Built for long-term multi-use operation, reducing tag replacement costs across your entire garment inventory.
Easy to Attach
Slim 55 x 25 mm form factor clips onto any garment quickly without tools or special training required.
Bulk Stock Counting
Reads thousands of tagged items simultaneously from over 2 metres without line-of-sight scanning.
Anti-Theft Ready
Integrates with EAS Electronic Article Surveillance gates for 24/7 security at store entry and exit points.
Long Read Range
Reads reliably from over 2 metres without requiring line-of-sight, enabling fast aisle and portal scanning.
Global Frequency
Operates on 860 to 960 MHz globally, compatible with RFID infrastructure and readers worldwide.
Detailed Technical
Mechanical Specifications
Form Factor and Physical Properties
- Tag Form Factor
- Dimensions
- Weight
- 4 g
- Attachment Method
- Pin / Clip
- Operating Temperature
- -40°C to +85°C
- Applicable Surfaces
- Retail, Asset Tracking
Electrical Specifications
RF and Protocol Parameters
- Air Interface Protocol
- EPC Class 1 Gen 2 ISO 18000-6C
- Operating Frequency
- IC Type
- Memory
- EPC 96 bit, User 0 bit
- EPC Memory Content
- Unique, Auto-Serialized
- Max Read Distance
- Over 2 metres
Explore Our

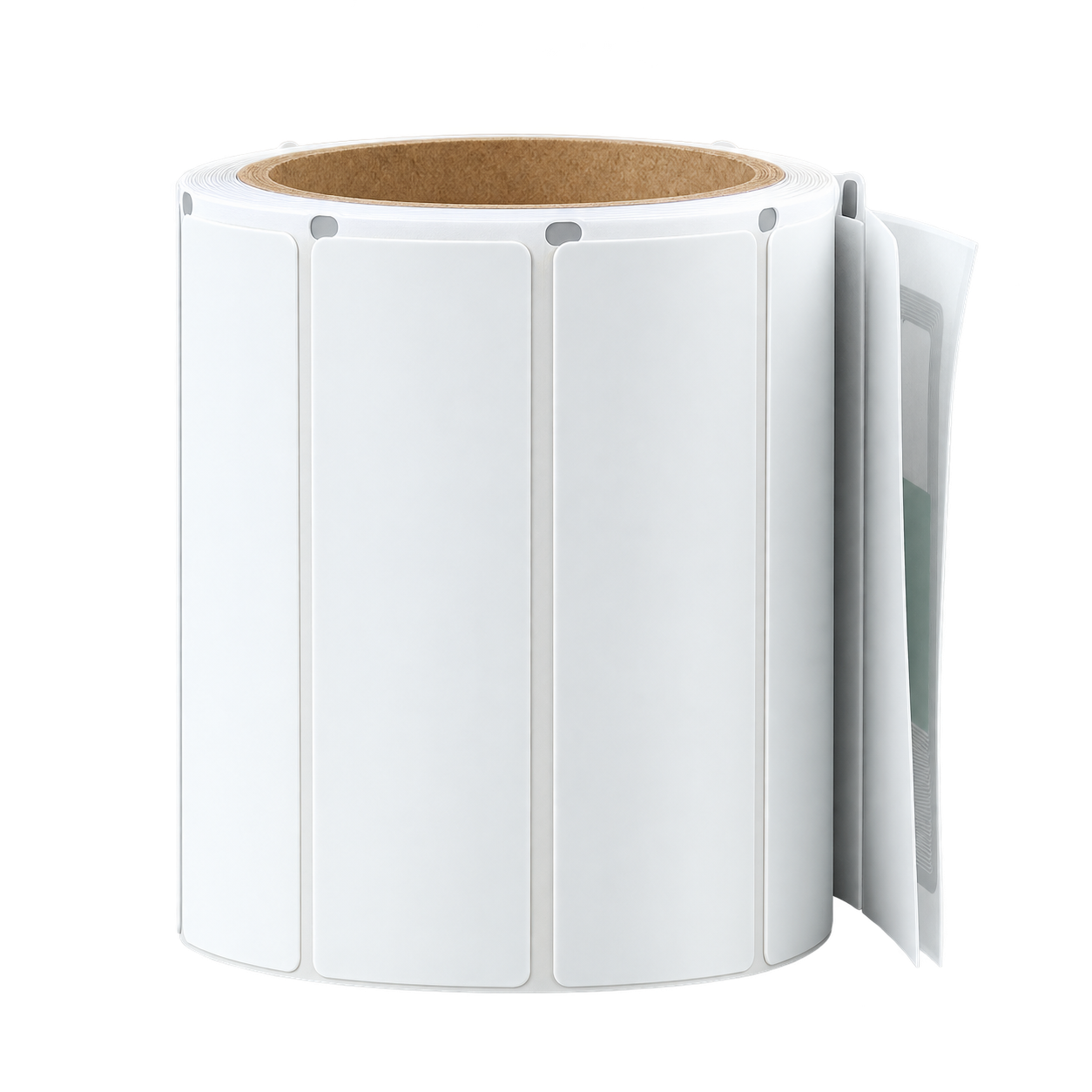

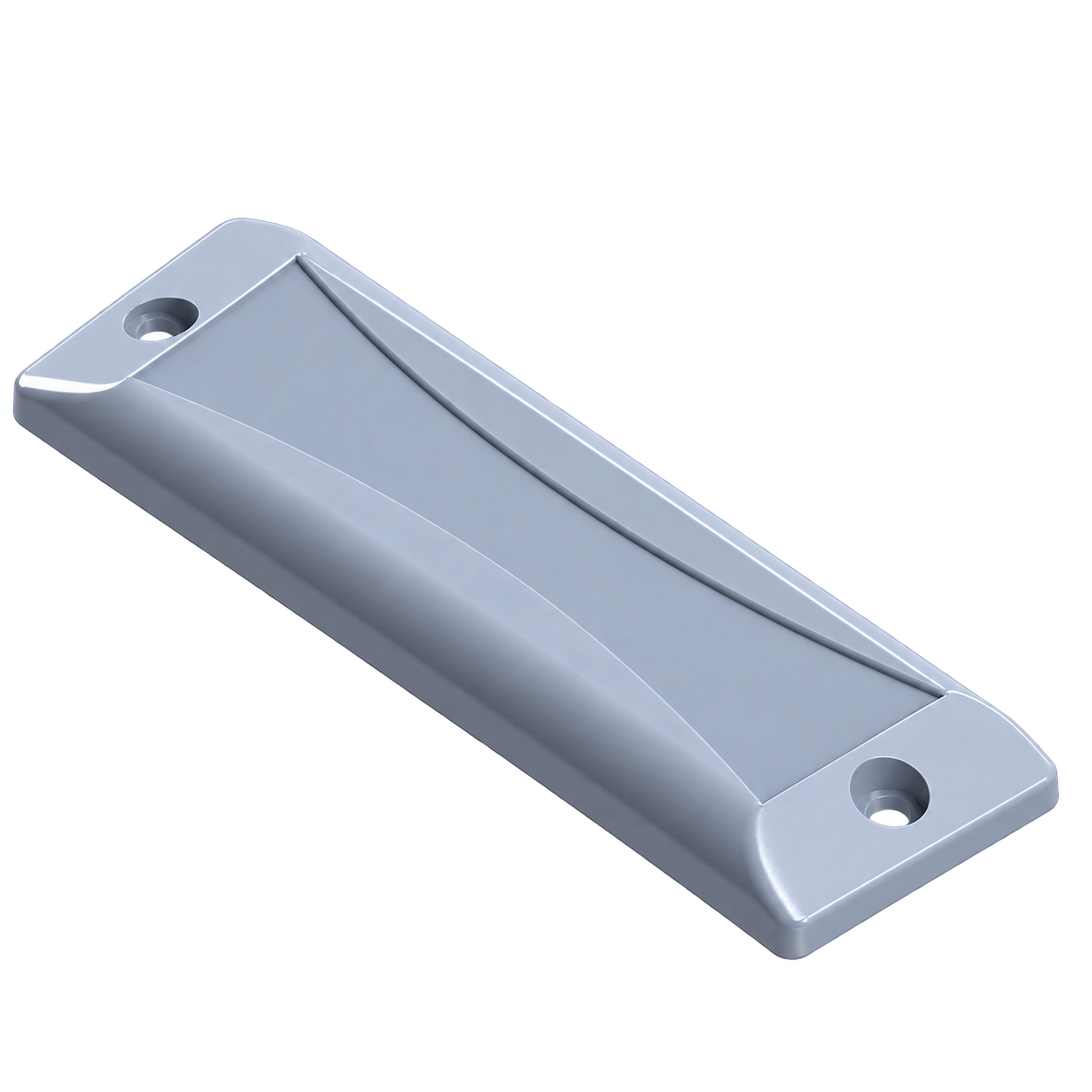

From retail and jewellery tags to bin tags and UHF labels, GreenFuturz manufactures RFID tags for every industry and application.
GreenFuturz Original

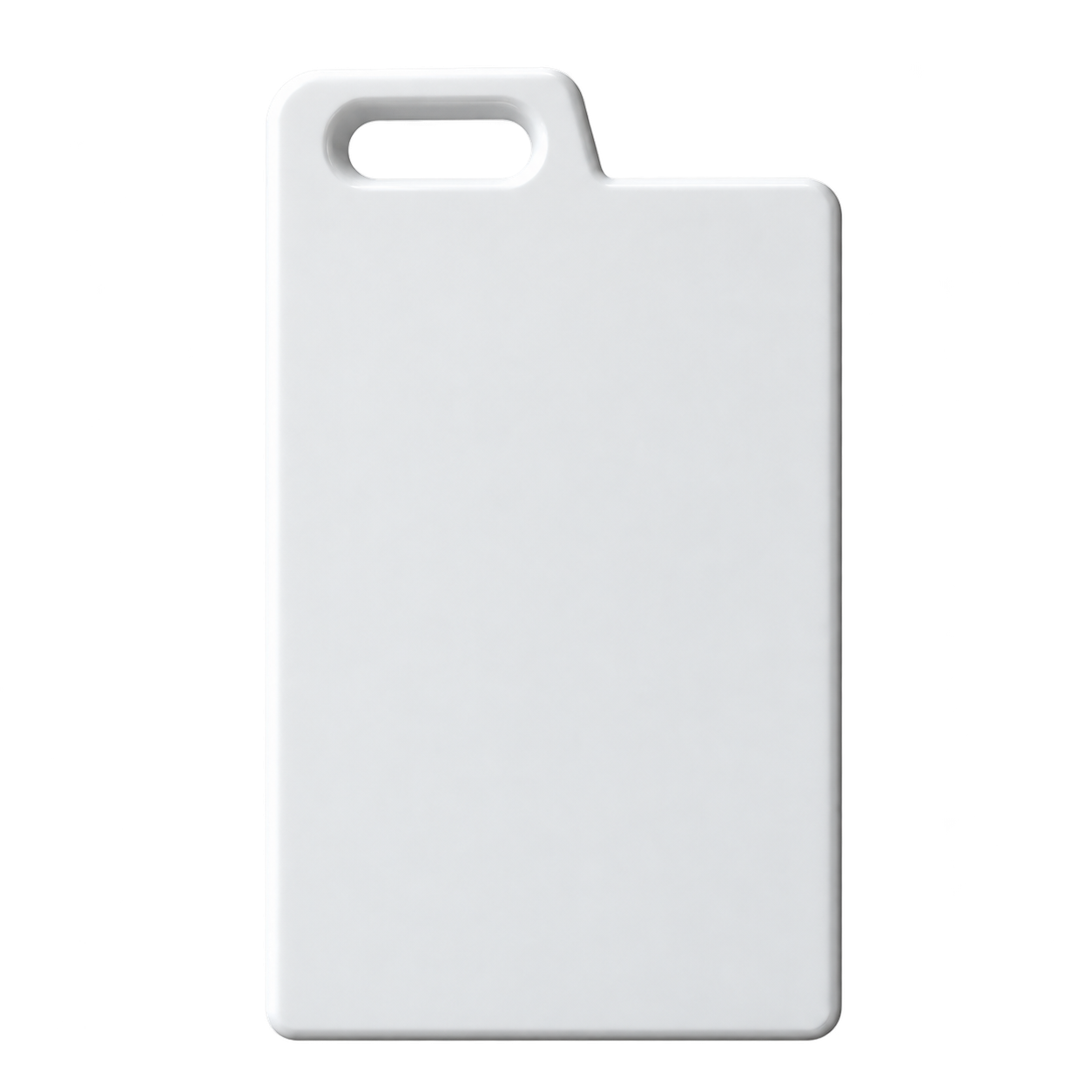

RFID Jewellery Tag
The GreenFuturz RFID Jewellery Tag is a reusable UHF hard tag specially designed for precious and high-value items. At just 28 x 18 mm and 2g, it fits on rings, chains, earrings and pendants without interfering with display. Built on the Monza R6 chip, it reads from up to 2 metres, integrates with EAS gates for anti-theft protection and supports multi read-write capability for complete jewellery inventory control.
Monza R6 Chip
EAS Gate Compatible
Reusable Design
Download Datasheet
THE JEWELLERY JOURNEY
From Tag to Trust
One Tag. Every Piece Accounted For.
01
Tag
Attaches to any piece, rings to necklaces.
02
Track
Real-time location of every display item.
03
Count
Full display audit in seconds.
04
Bill
Faster, smoother invoicing at checkout.
05
Secure
EAS gate integration for 24/7 anti-theft.
WHAT SETS IT APART
Precision Built. Every Detail.
Reusable
Multi read-write capability makes the tag fully reusable across inventory cycles, reducing replacement costs.
Tiny 28 x 18 mm Form
Fits on rings, chains, earrings and pendants at just 2g without obstructing display or customer handling.
Bulk Inventory Counting
Audit an entire jewellery display in seconds without handling each individual piece.
Anti-Theft Ready
Integrates with EAS Electronic Article Surveillance gates for 24/7 security at store entry and exit points.
Smooth Label Surface
Smooth finish makes it easy to label pricing, item number, description and weight directly on the tag.
Custom Reports
Generate customised reports including fastest selling and best selling items by category across your store.
Detailed Technical
Mechanical Specifications
Form Factor and Physical Properties
- Tag Form Factor
- Dimensions
- Weight
- 2 g
- Attachment Method
- Jewellery and Cosmetics
- Operating Temperature
- -40°C to +85°C
- Applicable Surfaces
- Jewellery and Cosmetics
Electrical Specifications
RF and Protocol Parameters
- Air Interface Protocol
- EPC Class 1 Gen 2 ISO 18000-6C
- Operating Frequency
- IC Type
- Memory
- EPC 96 bit, User 0 bit
- EPC Memory Content
- Unique, Auto-Serialized
- Max Read Distance
- 2 metres (tested with RFD8500)
Explore Our
From retail and jewellery tags to bin tags and UHF labels, GreenFuturz manufactures RFID tags for every industry and application.
GreenFuturz Original
RFID Jewellery Tag
The GreenFuturz RFID Jewellery Tag is a reusable UHF hard tag specially designed for precious and high-value items. At just 28 x 18 mm and 2g, it fits on rings, chains, earrings and pendants without interfering with display. Built on the Monza R6 chip, it reads from up to 2 metres, integrates with EAS gates for anti-theft protection and supports multi read-write capability for complete jewellery inventory control.
Monza R6 Chip
EAS Gate Compatible
Reusable Design
Download Datasheet
THE JEWELLERY JOURNEY
From Tag to Trust
One Tag. Every Piece Accounted For.
01
Tag
Attaches to any piece, rings to necklaces.
02
Track
Real-time location of every display item.
03
Count
Full display audit in seconds.
04
Bill
Faster, smoother invoicing at checkout.
05
Secure
EAS gate integration for 24/7 anti-theft.
WHAT SETS IT APART
Precision Built. Every Detail.
Reusable
Multi read-write capability makes the tag fully reusable across inventory cycles, reducing replacement costs.
Tiny 28 x 18 mm Form
Fits on rings, chains, earrings and pendants at just 2g without obstructing display or customer handling.
Bulk Inventory Counting
Audit an entire jewellery display in seconds without handling each individual piece.
Anti-Theft Ready
Integrates with EAS Electronic Article Surveillance gates for 24/7 security at store entry and exit points.
Smooth Label Surface
Smooth finish makes it easy to label pricing, item number, description and weight directly on the tag.
Custom Reports
Generate customised reports including fastest selling and best selling items by category across your store.
Detailed Technical
Mechanical Specifications
Form Factor and Physical Properties
- Tag Form Factor
- Dimensions
- Weight
- 2 g
- Attachment Method
- Jewellery and Cosmetics
- Operating Temperature
- -40°C to +85°C
- Applicable Surfaces
- Jewellery and Cosmetics
Electrical Specifications
RF and Protocol Parameters
- Air Interface Protocol
- EPC Class 1 Gen 2 ISO 18000-6C
- Operating Frequency
- IC Type
- Memory
- EPC 96 bit, User 0 bit
- EPC Memory Content
- Unique, Auto-Serialized
- Max Read Distance
- 2 metres (tested with RFD8500)
Explore Our
From retail and jewellery tags to bin tags and UHF labels, GreenFuturz manufactures RFID tags for every industry and application.
GreenFuturz Original
RFID UHF Label
GreenFuturz manufactures and supplies RFID UHF Labels in multiple sizes across India, offering the best prices for RFID inlays, paper tags, on-metal tags and more. High performance across a wide range of retail, industrial and supply chain management applications, with ISO 9001:2008 quality management support and serialized TID for every label.
ISO 9001:2008 Certified
Multiple Sizes Available
Serialized TID
RFID Inlays and Labels
We offer a comprehensive range of RFID UHF inlays and labels across form factors and antenna designs to match every application — from slim jewellery labels to long-range industrial wings and high-performance dogbone inlays for automotive and logistics.
| Parameter | DogboneLong Range Industrial | Belt M6Apparel and Asset | Belt M5Retail Tagging | Jewellery Label J6Jewellery Tagging | WingsAutomotive Industrial | Paper Label GXMulti-Industry |
|---|---|---|---|---|---|---|
| Frequency | Global 860-960 MHz | Global 860-960 MHz | Global 860-960 MHz | Global 860-960 MHz | Global 860-960 MHz | Global 860-960 MHz |
| Read Distance | Up to 12 metres | Up to 8 metres | Up to 6 metres | Up to 2 metres | Up to 15 metres | Up to 8 metres |
| IC Type | Monza M6 | Monza M6R / U Code | Monza M6R / U Code | Monza M6R / U Code | Monza M6R / U Code | Monza M6R / U Code |
| Dimensions | 94 x 24 mm | 70 x 10 mm | 70 x 14 mm | 68 x 35 mm | 30 x 72 mm | Custom die cut (73x13 or 73x40) |
| Memory | EPC 96 bit | EPC 96 bit | EPC 96 bit | EPC 96 bit | EPC 96 bit | EPC 96 bit |
| Operating Temperature | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C |
| Delivery Format | Wet Inlay / Paper | Wet Inlay / Paper | Wet Inlay / Paper | Wet Inlay / Paper | Wet Inlay / Paper | Paper |
| Typical Applications | Automotive, Logistics, Industrial | Apparel, Industrial, Asset Tracking | Apparel, Industrial, Retail Tagging | Jewellery Tagging | Automotive, Industrial | Retail, Warehouse, Apparel, Healthcare, Beauty and Personal Care |
Explore Our
From retail and jewellery tags to long-range bin and pallet tags, GreenFuturz manufactures RFID tags for every industry and application.
